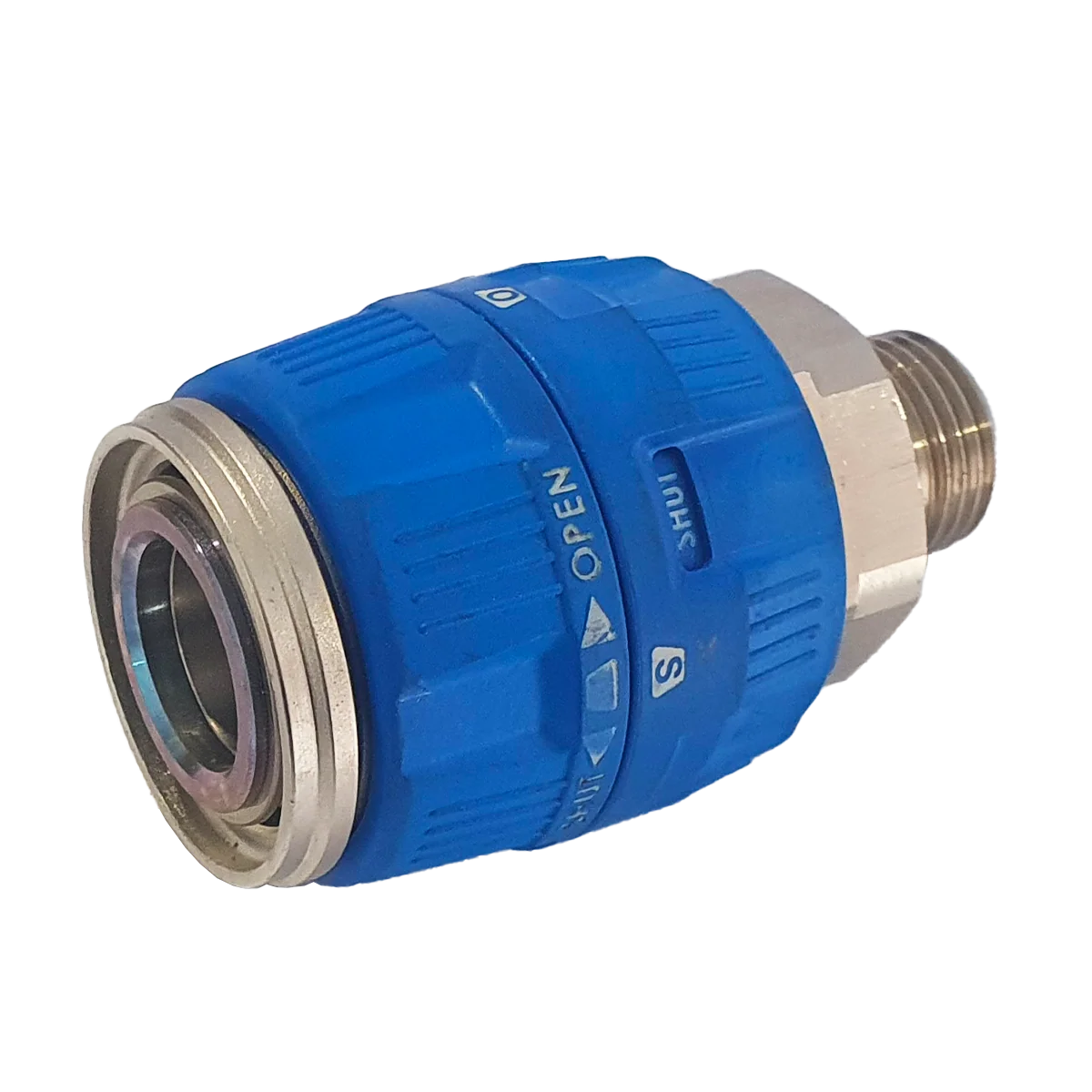

[PVR800SM] Large Nitto Safety Purge/Locking Coupler with 1" Male Thread

The Nitto PVR800SM is a purge-type safety air coupler designed for fixed compressed air installations where high airflow, safety, and durability are critical. It is a socket coupler with a 1 inch male thread, intended to screw directly into a female threaded port on machines, wall-mounted air points, manifolds, or hard-piped air systems. The SM designation identifies this model as a socket with a male thread, making it suitable for permanent or semi-permanent mounting rather than hose reel or portable hose use.
A key feature of the PVR800SM is its integrated purge safety function. During disconnection, the coupler automatically releases downstream air pressure in a controlled manner before allowing the plug to fully disengage. This controlled pressure release significantly reduces the risk of hose whip, sudden movement, and loud pressure discharge that are common hazards with conventional quick-connect couplings, particularly in large-bore, high-volume air systems.
The coupler is designed to allow connection even when residual pressure is present in the line, improving usability in real-world industrial and agricultural environments. A sleeve lock mechanism prevents accidental disconnection during operation, ensuring the coupling remains securely engaged until deliberately released. This makes it well suited to high-vibration or high-traffic areas where unintentional disconnection could pose a safety risk.
As part of a high-flow coupling series, the PVR800SM is intended for applications requiring substantial air volume. The 1 inch connection supports reduced pressure drop and efficient air delivery to demanding equipment, helping maintain performance for large pneumatic tools, air lances, blowdown systems, and other high-consumption applications.
Typical use cases include wall-mounted air outlets in workshops, fixed machine connections, plant rooms, agricultural sheds, processing facilities, and industrial installations where air lines are hard-piped or permanently installed. The male threaded socket design makes it ideal for mounting on regulators, isolation valves, distribution blocks, or directly into machinery where a robust and safe quick-connect point is required.
The blue body provides clear visual identification as a purge safety coupler, helping distinguish it from standard non-purge fittings in complex air systems. Built from durable materials with reliable internal sealing, the PVR800SM is designed to withstand repeated connection cycles and continuous service in demanding environments.
In summary, the PVR800SM is a high-flow, 1 inch purge safety air coupler engineered for fixed compressed air installations. Its male threaded socket design, controlled pressure release, and secure locking mechanism make it an excellent choice for machine-side and wall-mounted air points where safety, airflow performance, and long-term reliability are essential.
