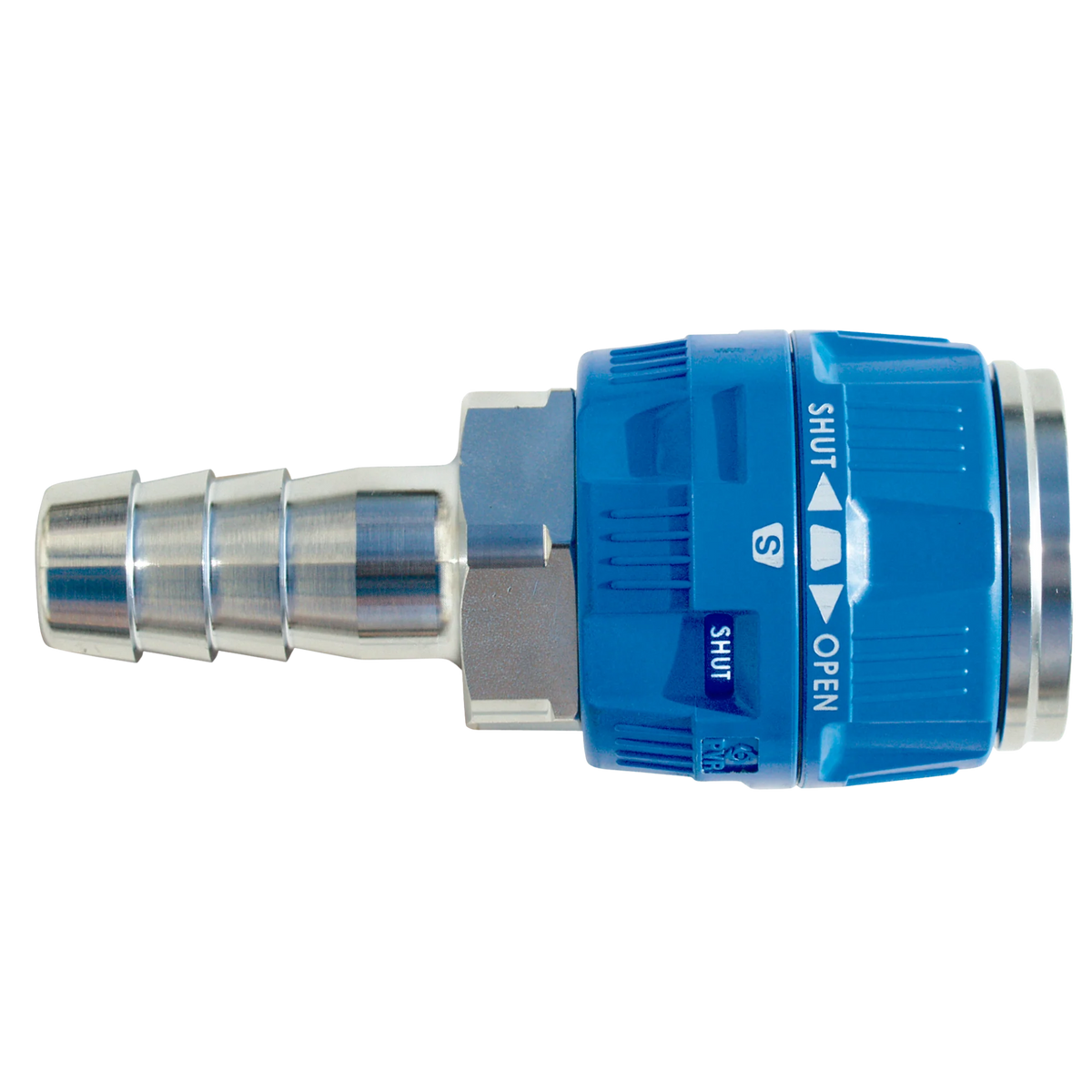

[PVR800SH] Large Nitto Safety Purge/Locking Coupler with 1" Hose Barb

The Nitto PVR800SH is a purge-type safety air coupler designed for hose-end applications where very high airflow, controlled disconnection, and operator safety are critical. It is a socket coupler with a 1 inch hose barb connection, intended to be permanently fitted to the working end of a 1 inch air hose, including high-capacity hose reels, bulk air supply hoses, and heavy-duty compressed air distribution lines. The SH designation identifies this variant as a socket with a hose barb, making it ideal for flexible hose installations rather than threaded or fixed mounting.
A key feature of the PVR800SH is its integrated purge safety mechanism. When a plug is disconnected, the coupler first vents downstream air pressure in a controlled manner before allowing full separation. This controlled release significantly reduces the risk of hose whip, violent movement, and excessive noise that can occur with standard quick-connect couplings, particularly on large-bore, high-volume hoses where stored energy is substantial.
The coupler allows connection even when residual pressure remains in the hose, improving usability in real-world conditions where lines are not always fully depressurised. A sleeve lock mechanism prevents accidental disconnection during operation, ensuring the coupling remains securely engaged until intentionally released. This makes it well suited to mobile compressor systems, hose reels, agricultural equipment, and industrial environments where vibration and movement are common.
As part of the PVR series, the PVR800SH is designed for maximum airflow and is fully compatible with 100-series large Nitto plugs. This high-flow pairing minimises pressure drop and supports demanding applications such as large blowdown lances, high-output blowguns, industrial cleaning systems, and air distribution setups requiring substantial air volume.
Typical use cases include fitting to the business end of 1 inch air hoses, heavy-duty manual or spring rewind hose reels, mobile diesel compressor setups, agricultural air systems, construction equipment, and industrial maintenance operations. When properly clamped to the hose, it provides a durable and safe quick-connect point that remains with the hose at all times.
The blue body provides clear visual identification as a purge safety coupler, helping distinguish it from standard non-purge fittings in mixed systems. Manufactured from robust materials with dependable internal sealing, the PVR800SH is built to withstand frequent connection cycles and harsh operating conditions associated with high-flow compressed air use.
In summary, the PVR800SH is a 1 inch hose barb purge safety air coupler designed for high-capacity hose and hose reel applications. Its controlled pressure release, secure locking mechanism, and compatibility with 100-series Nitto plugs make it an excellent choice for large-bore compressed air hoses where safety, reliability, and maximum airflow are essential.
