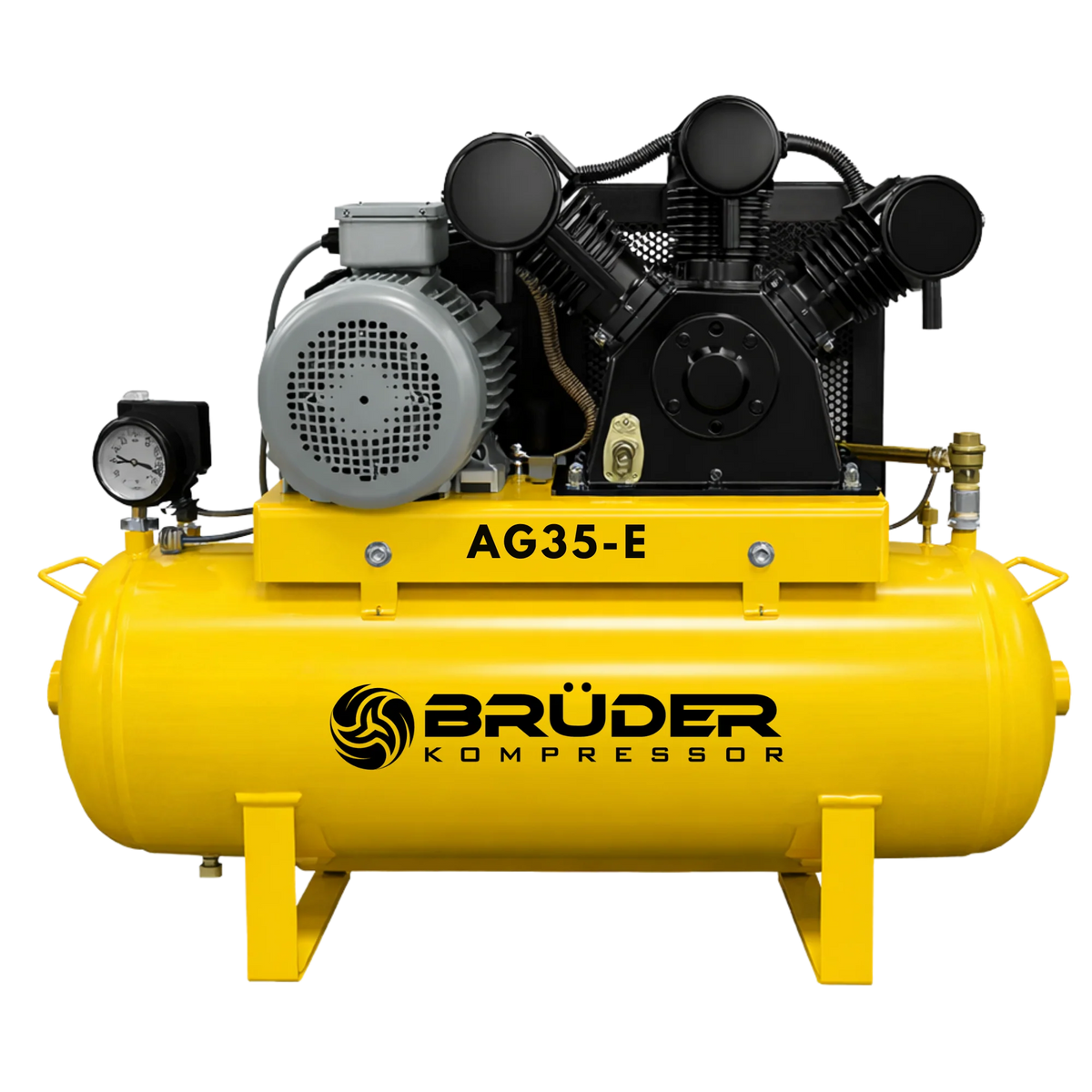

[AG35-E] 35cfm, 150PSI 3 Phase Electric driven Piston on 150L Tank STAT (25cfm FAD)

The Bruder AG35-E is a high-output, three-phase electric piston air compressor engineered for demanding workshop and industrial applications where higher airflow and sustained performance are essential. Designed and built in Australia, it combines a heavy-duty cast iron pump with a compliant Australian-made air receiver to deliver dependable compressed air in professional environments. With a two-stage, three-cylinder configuration producing up to 140 PSI and strong free air delivery, the AG35-E is suited to operations running multiple air tools or higher-consumption equipment. The belt-driven design allows the pump to run at controlled speeds, reducing vibration and mechanical stress while maintaining consistent output. A well-ventilated metal belt guard protects critical components and supports effective cooling. The Australian-made air receiver is manufactured to AS1210 boiler specification and approved in all states. The unit features a fully adjustable automatic stop/start pressure switch with overload protection, ensuring controlled cycling and motor protection during heavy use. Heat-treated steel suction and discharge valves maximise efficiency and long-term durability. Built for practical, long-term ownership, the AG35-E includes cartridge-style air filters with noise dampeners, genuine Nitto Kohki fittings as standard, non-return and safety pressure relief valves, an easy-read pressure gauge, and an accessible drain cock. All steel components are treated with primer/etch and finished with two coats of industrial enamel for corrosion resistance. The compressor is fully repairable, with minimal use of disposable materials. As with all Bruder compressors, spare parts are stocked locally, including less common components, so you are not reliant on overseas freight delays. Our team provides direct phone-based technical assistance and qualified mechanical service support to ensure reliable performance throughout the compressor’s working life. Specifications:

• Motor: 7.5 HP (5.5 kW) electric motor
• Voltage: 415 V
• Starting: Automatic
• Compressor type: Belt drive, two stage
• Cylinders: 3
• Pump construction: Heavy duty cast iron
• Free Air Delivery (FAD): 24.5 CFM
• Maximum pressure: 140 PSI
• Tank capacity: 150 L Australian made receiver (AS1210 compliant)
• Activation: Electric pressure switch with auto cut in/out
• Mounting: Forklift slots
• Length: 154 cm
• Width: 58 cm
• Height: 100 cm
• Weight: 180 kg
• Warranty: 24 months
• Country of Origin: Australia

Typical Applications:

• Automotive and heavy vehicle workshops
• Running multiple pneumatic tools simultaneously
• Fabrication and engineering workshops
• Tyre service centres
• Industrial maintenance departments
• Agricultural machinery servicing facilities
• Trade environments requiring higher CFM capacity

If you require guidance on airflow requirements, duty cycle considerations, or electrical supply suitability, contact our team for practical sizing advice. We will ensure the AG35-E is correctly matched to your application, backed by local parts availability and direct mechanical support.

Weight: 50.0 kg
Dimensions: 1200 × 1200 × 1100 mm
