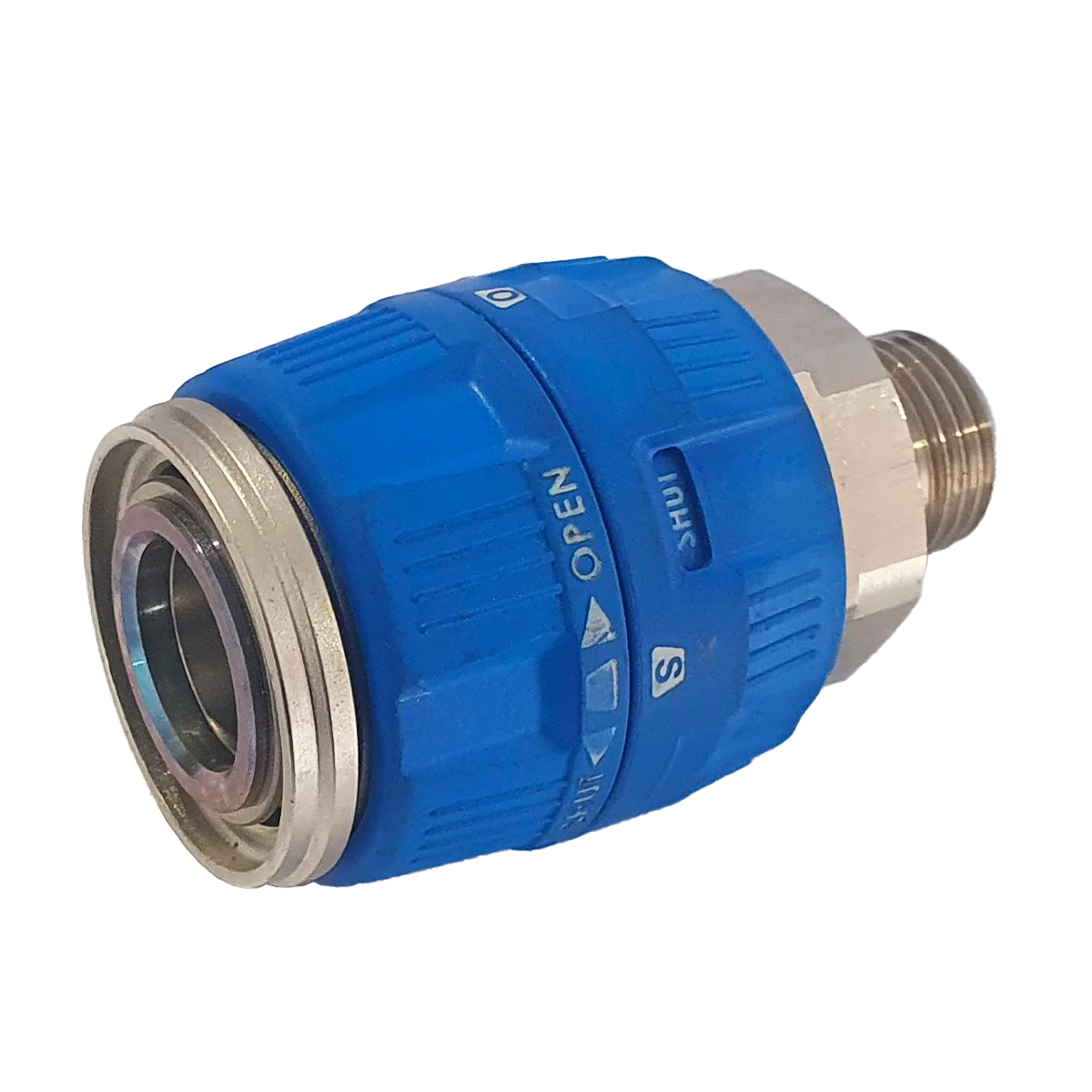

[PVR600SM] Large Nitto Safety Purge/Locking Coupler with 3/4" Male Thread

The Nitto PVR600SM is a purge-type safety air coupler designed to improve safety, control, and convenience in compressed air systems. It is a socket coupler with a 3/4 inch male thread, intended to screw directly into a female threaded port on hose reels, manifolds, drop lines, or fixed air distribution points. The SM designation indicates this variant is designed for threaded mounting rather than hose tails or push-fit connections.
A key feature of the PVR600SM is its built-in purge mechanism. When disconnecting a tool or hose, the coupler first releases downstream air pressure in a controlled manner before allowing full separation. This greatly reduces the risk of hose whip, sudden movement, and loud pressure release that can occur with conventional quick-connect couplings. The controlled purge improves operator safety and makes disconnection more predictable and comfortable, particularly in high-flow or high-pressure systems.
The coupler is designed to allow connection even when residual pressure is present in the line. A sleeve lock mechanism prevents accidental disconnection during use, making it suitable for mobile equipment, vibrating machinery, and demanding industrial or agricultural environments. Once connected and locked, the air valve opens fully to supply air, while the locking sleeve ensures the connection remains secure until intentionally released.
Despite its safety-focused design, the PVR600SM maintains strong airflow performance. It offers higher flow capacity than older standard coupler designs, helping reduce pressure drop and ensuring efficient operation of air tools and equipment. This makes it well suited to applications where both safety and performance are important, such as high-output blowguns, pneumatic tools, and air distribution systems.
Typical use cases include installation on hose reels, compressor outlets, fixed airline drops, and manifolds in workshops, construction sites, agricultural operations, and industrial facilities. It is particularly beneficial in environments where tools are frequently connected and disconnected, as it eliminates the need to manually bleed air pressure before disconnection.
The blue body provides quick visual identification of the purge safety type, helping distinguish it from standard couplers in mixed systems. The coupler is manufactured from durable materials with reliable internal sealing, designed to withstand repeated connection cycles and the rigours of everyday compressed air use.
In summary, the PVR600SM purge safety coupler is a robust, high-flow, safety-oriented quick-connect socket. With its 3/4 inch male threaded mounting, controlled pressure release, and secure locking mechanism, it offers a safer and more user-friendly alternative to conventional air couplings in demanding compressed air applications.
