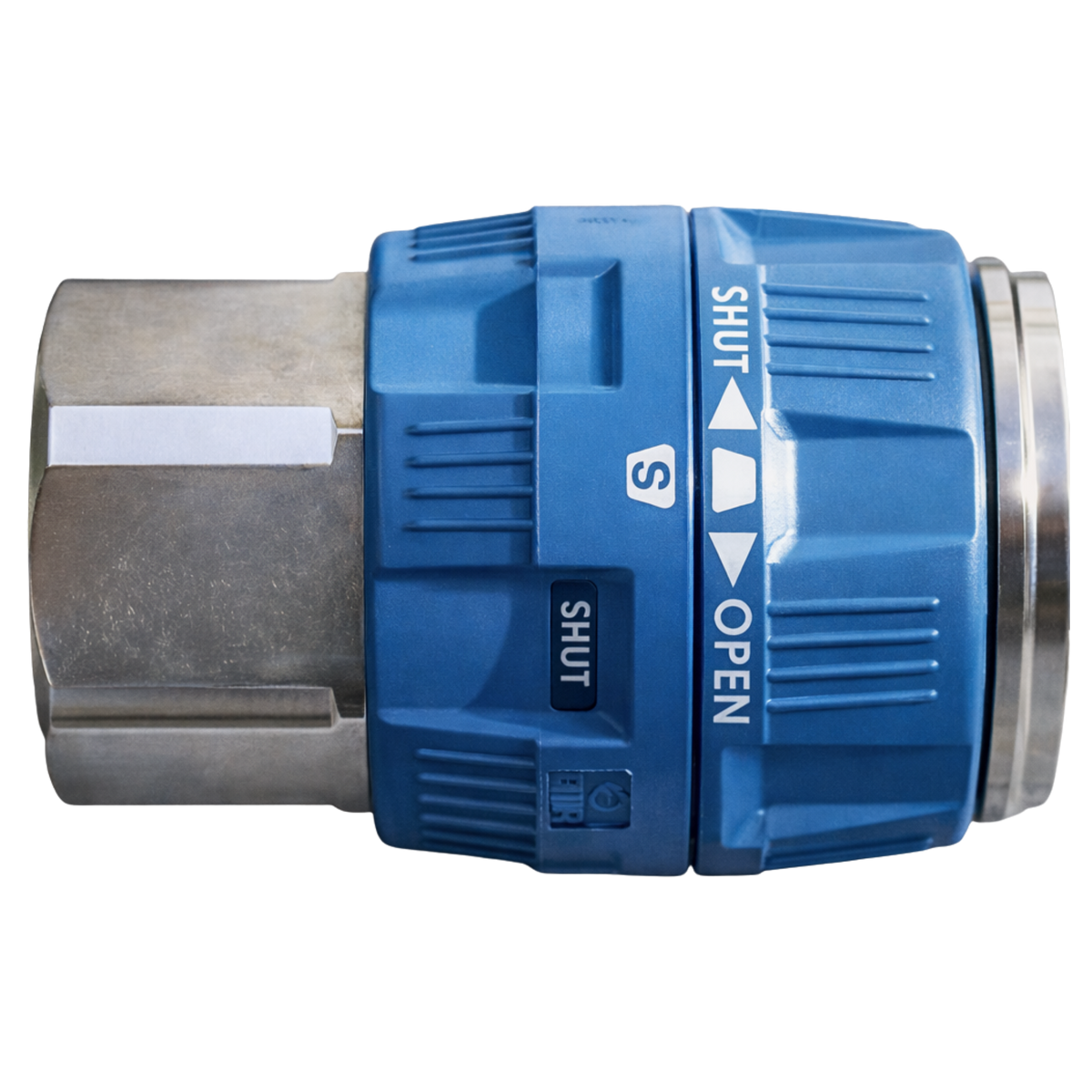

[PVR600SF] Large Nitto Safety Purge/Locking Coupler with 3/4" Female Thread

The Nitto PVR600SF is a purge-type safety air coupler designed for fixed compressed air installations where safety, reliability, and consistent airflow are required. It is a socket coupler with a 3/4 inch female thread, intended to screw onto a male threaded fitting such as a pipe nipple, valve, adaptor, or hard-line connection. The SF designation identifies this model as a socket with a female thread, making it well suited to permanent or semi-permanent mounting on the machine side or at wall-mounted air points.
A core feature of the PVR600SF is its integrated purge safety function. When a plug is disconnected, the coupler automatically releases downstream air pressure in a controlled manner before allowing full separation. This controlled venting significantly reduces the risk of hose whip, sudden hose movement, and loud pressure release, which are common hazards with standard quick-connect couplings. This is particularly important in systems where air lines remain pressurised or supply high airflow.
The coupler can be connected even when residual pressure is present in the line, improving usability in real-world environments where air is not always fully isolated before tool changes. A sleeve lock mechanism prevents accidental disconnection during operation, ensuring the coupling remains securely engaged until deliberately released. This adds an extra level of safety in industrial, agricultural, and workshop settings where vibration or movement is common.
As part of a high-flow coupling series, the PVR600SF is designed to minimise pressure drop while delivering reliable airflow. The 3/4 inch connection size makes it suitable for medium to high air demand applications, supporting efficient operation of pneumatic tools, blowdown equipment, and fixed air distribution points.
Typical use cases include wall-mounted air outlets, machine connections, plant rooms, agricultural sheds, workshops, and industrial facilities with hard-piped compressed air systems. The female threaded design allows straightforward integration with existing pipework, regulators, isolation valves, and distribution manifolds, providing a safe and durable quick-connect point.
The blue body allows easy visual identification as a purge safety coupler, helping distinguish it from standard non-purge fittings in mixed systems. Manufactured from robust materials with reliable internal sealing, the PVR600SF is built to withstand repeated connection cycles and continuous use in demanding environments.
In summary, the PVR600SF is a 3/4 inch female thread purge safety air coupler designed for fixed compressed air installations. Its controlled pressure release, secure locking mechanism, and high-flow capability make it an excellent choice for machine-side and wall-mounted air points where safety and dependable performance are essential.
