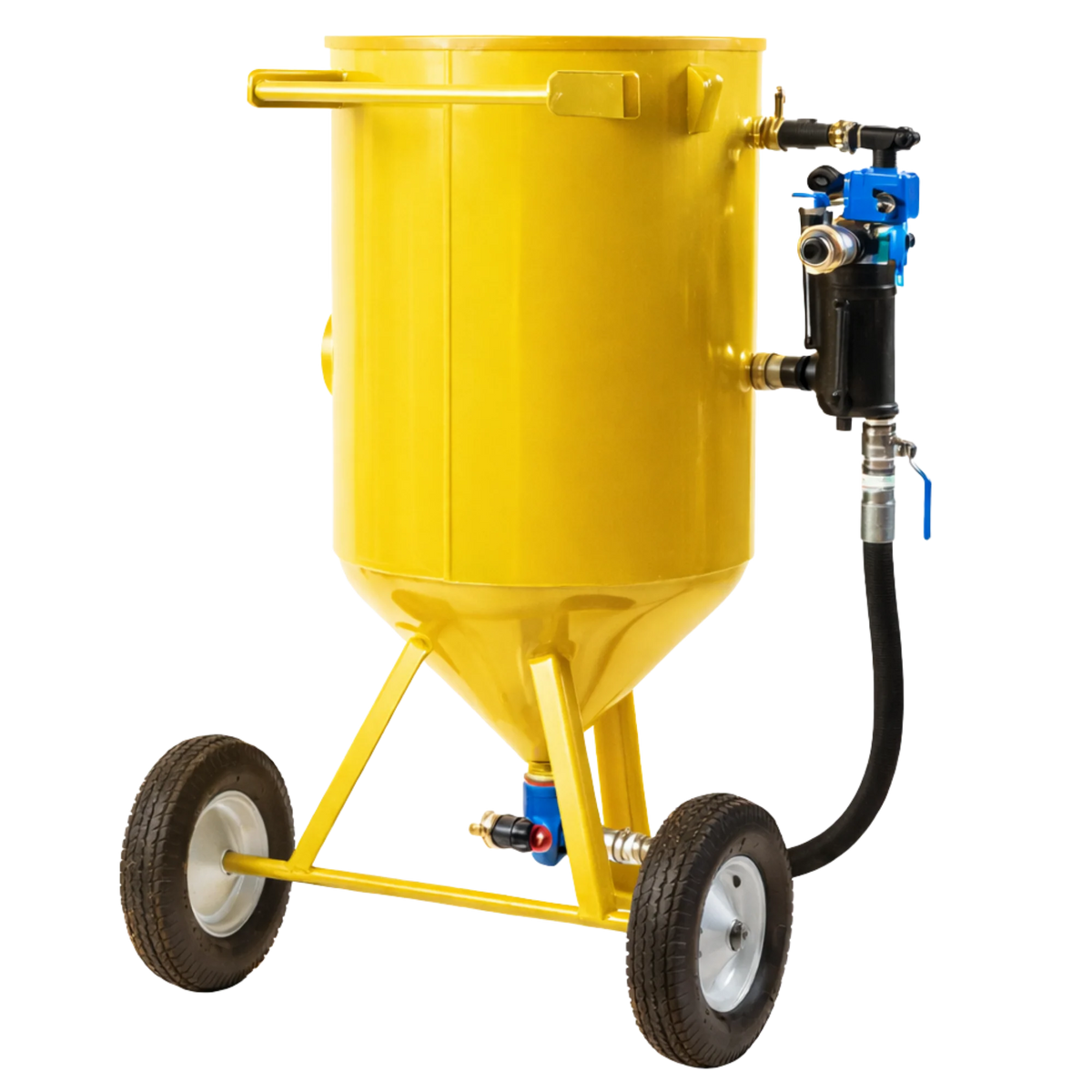

200-Litre Industrial Blast Kit – Maximum Capacity Abrasive Blasting System
The SP520007 200-Litre Classic Blast Kit is a high-capacity, industrial abrasive blasting system designed for large-scale, continuous blasting operations where productivity and uptime are critical. Engineered for professional blasting contractors, shipyards, fabrication plants, and heavy industry, this system delivers exceptional efficiency with minimal interruption.
Positioned at the top end of Brüder’s POWER FULL / THE POWER FULL AIR blasting solutions, this blast kit is built to perform in the most demanding environments.
- Moisture/water separator
- Compact pneumatic remote control system
- Silencer
- Final abrasive control valve
Designed for Continuous High-Output Blasting
With a 200-litre abrasive capacity, this blast kit provides an impressive continuous blast time of approximately 80 minutes, dramatically reducing downtime caused by refilling. This makes it ideal for large surface areas, in-situ blasting, and production environments where stopping work impacts efficiency.
The pressure vessel is fabricated from heavy-gauge steel and manufactured to PED and CE standards, ensuring safety, structural integrity, and long service life under sustained pressure and abrasive flow.
A concave top with an automatic heavy-duty pop-up valve allows fast, secure filling, while the conical base ensures complete and consistent abrasive flow to the metering valve, minimising waste and maintaining a stable blast profile.
Precision Control and Operator Safety
The SP520007 is equipped with a pneumatic remote control system, allowing full activation and shutdown at the nozzle end. This dead-man style control improves safety, reduces unnecessary abrasive usage, and enhances overall blasting efficiency.
A Fina II abrasive control valve enables precise regulation of media flow, allowing the operator to fine-tune output depending on abrasive type, surface condition, and required finish. Integrated seal-saver technology protects internal valve seals from abrasive ingress, extending component life and reducing maintenance intervals.
A built-in moisture/water separator helps remove moisture from incoming compressed air, preventing damp abrasive, clogging, and inconsistent blast performance.
Supplied as a Complete Industrial Blast Kit
The SP520007/BP-A-5000 is supplied fully assembled and ready for operation, including:
- 10 metres of heavy-duty blast hose
- 11 metres of twin-line control hose with AirFlo dead-man handle
- Boron carbide blast nozzle
- 10 metres of air supply hose with quick claw couplings
- Integrated pneumatic remote control system
- 12-month warranty
The heavy-duty wheeled chassis provides stability during operation while allowing repositioning on site, although this model is primarily intended for semi-static or fixed-area blasting.
Technical Specifications
- Media Capacity: 200 litres
- Approx. Blast Time: 80 minutes
- Tank Diameter: 620 mm
- Overall Height: 1380 mm
- Piping Size: 1¼″
- Weight: Approx. 135 kg
- Compliance: CE / PED approved
Ideal Applications
- Shipyard and marine blasting
- Structural steel and bridge refurbishment
- Large fabrication facilities
- Industrial maintenance and shutdown work
- High-volume commercial blasting contractors
Why Choose This System
The SP520007 / BP-A-5000 / BP20K Blast Kit is built for maximum output, minimal downtime, and long-term durability. As part of Brüder’s POWER FULL / THE POWER FULL AIR range, it delivers the scale, reliability, and control required for serious industrial blasting operations.
