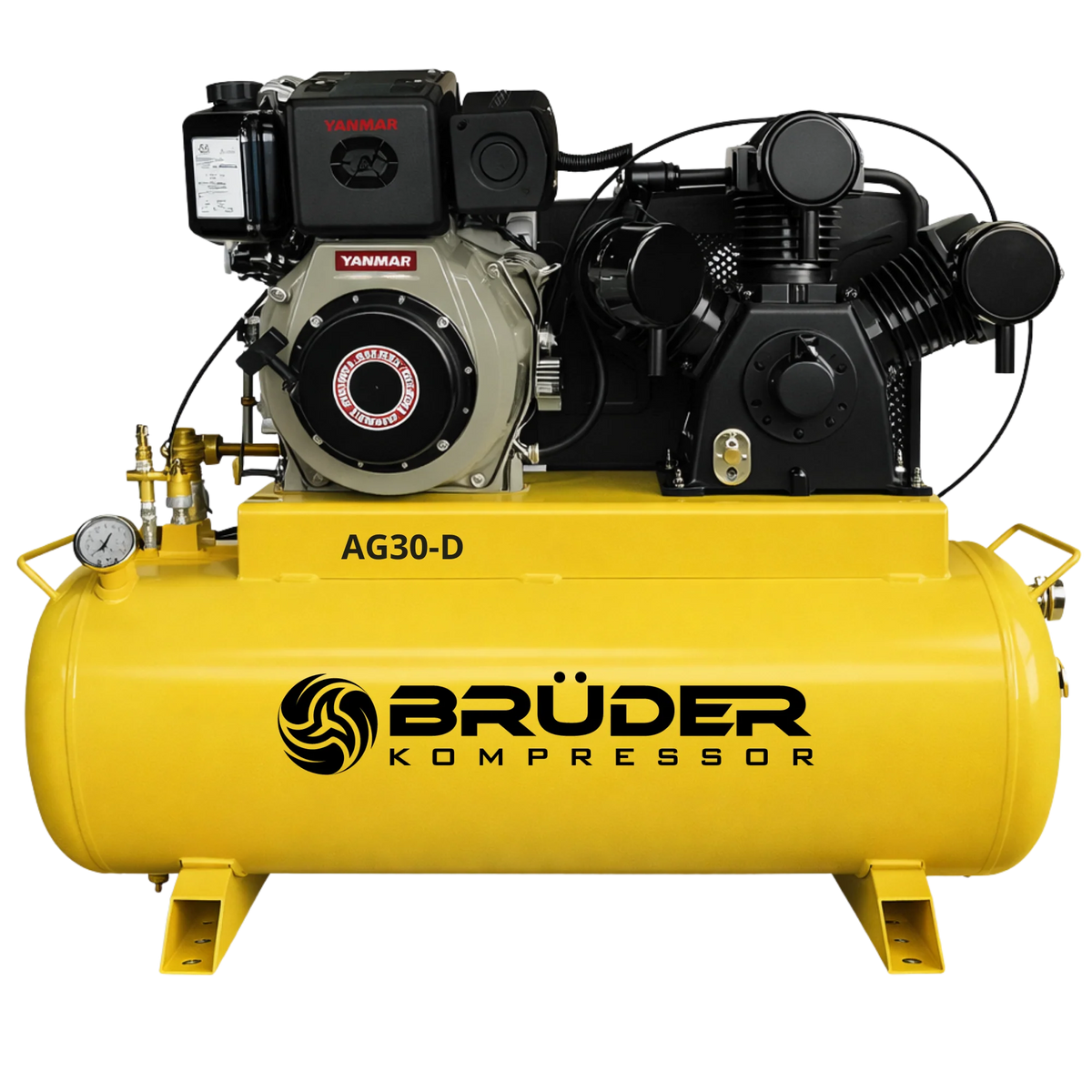

[AG30-D] 30cfm, 140PSI 7hp Yanmar Driven Piston on 100L tank with electric start

The Bruder AG30-D is a diesel-powered piston air compressor engineered for higher air demand in mobile and remote applications. Designed and manufactured in Australia, it combines a robust Yanmar diesel engine with a heavy-duty two-stage cast iron pump, delivering dependable compressed air where mains power is unavailable. With strong free air delivery and operating pressure up to 140 PSI, the AG30-D is suited to service trucks, field maintenance crews, agricultural operations, and civil works requiring reliable on-site air supply. The belt-driven configuration ensures controlled pump speeds, reducing vibration and mechanical wear while maintaining consistent output. A well-ventilated metal belt guard protects rotating components and supports effective cooling under load. The 100 litre Australian-made air receiver is manufactured to AS1210 boiler specification and approved in all states. The unit features a pneumatic throttle cylinder for responsive engine control, along with a non-return valve, safety pressure relief valve, easy-read pressure gauge, and accessible drain cock. Heat-treated steel suction and discharge valves enhance efficiency and long service life, while cartridge-style inlet filters with noise dampeners support clean and quieter operation. All steel components are treated with primer/etch and finished with two coats of industrial enamel for corrosion resistance. The compressor is fully repairable and designed with minimal disposable materials, making it suitable for long-term ownership in demanding environments. As with all Bruder compressors, spare parts are stocked locally, including less common components, eliminating reliance on overseas freight delays. Our team provides direct phone-based technical assistance and qualified mechanical service support to keep your compressor operational. Specifications:

• Engine: 7 HP Yanmar diesel engine
• Starting: Electric start
• Compressor type: Belt drive, two stage
• Cylinders: 3
• Pump construction: Heavy duty cast iron
• Free Air Delivery (FAD): 21 CFM
• Maximum pressure: 140 PSI
• Tank capacity: 100 L Australian made receiver (AS1210 compliant)
• Activation: Pneumatic throttle cylinder
• Length: 150 cm
• Width: 60 cm
• Height: 90 cm
• Weight: 140 kg
• Warranty: 24 months
• Country of Origin: Australia

Typical Applications:

• Service trucks and mobile maintenance units
• Agricultural and rural property operations
• Civil and construction site works
• Running rattle guns and pneumatic tools in the field
• Remote breakdown and repair response
• Machinery servicing and tyre inflation
• Trade environments without mains power access

If you require assistance selecting the correct diesel compressor for your airflow and duty cycle requirements, contact our team for practical sizing advice. We will ensure the AG30-D is properly matched to your application, backed by local parts availability and direct technical support.

Weight: 70.0 kg
Dimensions: 1200 × 1200 × 1200 mm
