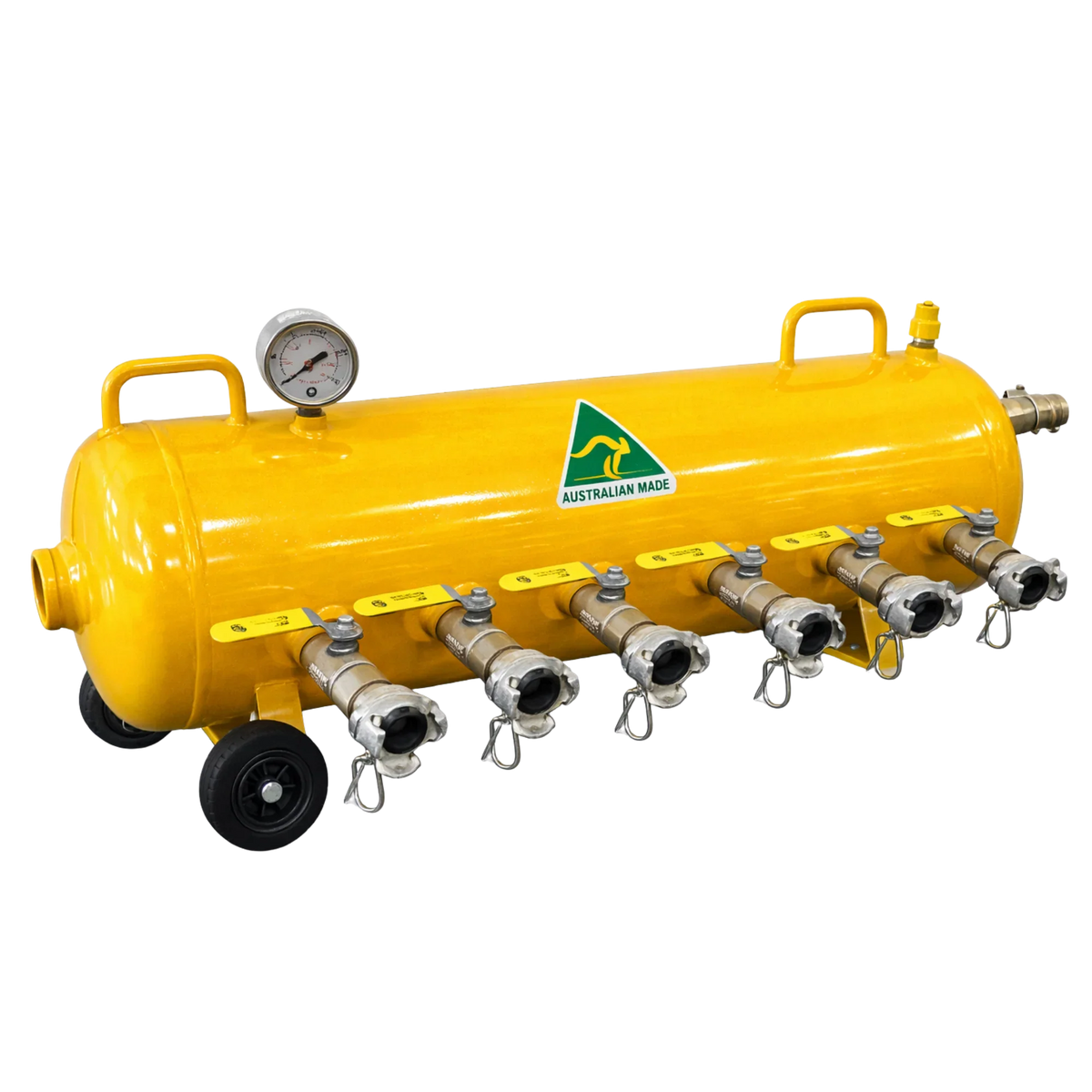

This 100-litre air distribution manifold and compressed air receiver is engineered for high-demand applications requiring increased air storage, stable pressure delivery, and safe multi-point distribution. Built and certified to AS1210 pressure vessel standards, it is designed to meet strict regulatory and operational requirements, making it suitable for industrial, construction, mining, and mobile compressed air systems where reliability and compliance are essential.
With a substantial 100-litre capacity and a total weight of 70 kg, this unit provides double the air storage of the 50-litre version, helping to reduce compressor cycling and maintain consistent airflow during peak demand. It is particularly effective in environments where multiple air tools or processes are running simultaneously, or where short bursts of high air consumption would otherwise cause pressure drop. The increased volume supports smoother operation, improved efficiency, and reduced wear on upstream compressors.
The vessel is finished in a durable powder-coated Dulux Golden Yellow, offering excellent resistance to corrosion, impact, and harsh outdoor conditions. Four rubber isolating mounts are integrated into the base to minimise vibration, reduce noise transmission, and protect mounting surfaces. This makes the unit well suited to fixed installations, skid-mounted systems, vehicle trays, and trailers used in mobile air supply applications.
Operational safety and monitoring are addressed through a clearly visible ¼” pressure gauge, allowing operators to easily monitor internal pressure levels. A ½” safety valve is fitted to protect the system from over-pressurisation, ensuring safe operation in demanding conditions. The primary inlet is a high-flow 50 mm (2”) connection, controlled by a 50 mm (2”) AGA ball valve for reliable isolation and airflow control. Connection to the air supply is completed via a 50 mm Minsup A claw coupling with an included safety clip, enabling secure, rapid connection and disconnection.
Air distribution is managed through six individual 19 mm (¾”) outlets, each equipped with its own AGA ball valve. This allows operators to independently control each air line, isolate unused outlets, and tailor airflow to specific tools or processes without interrupting the entire system. Each outlet is fitted with a 19 mm Minsup A claw coupling and corresponding safety clip, ensuring consistent, secure connections and reducing the risk of hose whip or accidental disconnection.
This air receiver and manifold is ideal for applications such as pneumatic tooling, abrasive blasting, shutdown maintenance, plant operations, and mobile service units. When incorporated into a Brüder POWER FULL or THE POWER FULL AIR system, it serves as a central air management hub that improves efficiency, enhances safety, and supports high-performance compressed air delivery across multiple users.
Key specifications include a 100-litre AS1210-certified pressure vessel, 70 kg total weight, powder-coated steel construction, one 2” valved inlet, six ¾” valved outlets, integrated pressure monitoring, and certified pressure relief. The result is a heavy-duty, professional-grade compressed air receiver and distribution manifold designed for serious work environments where capacity, control, and durability are non-negotiable.
