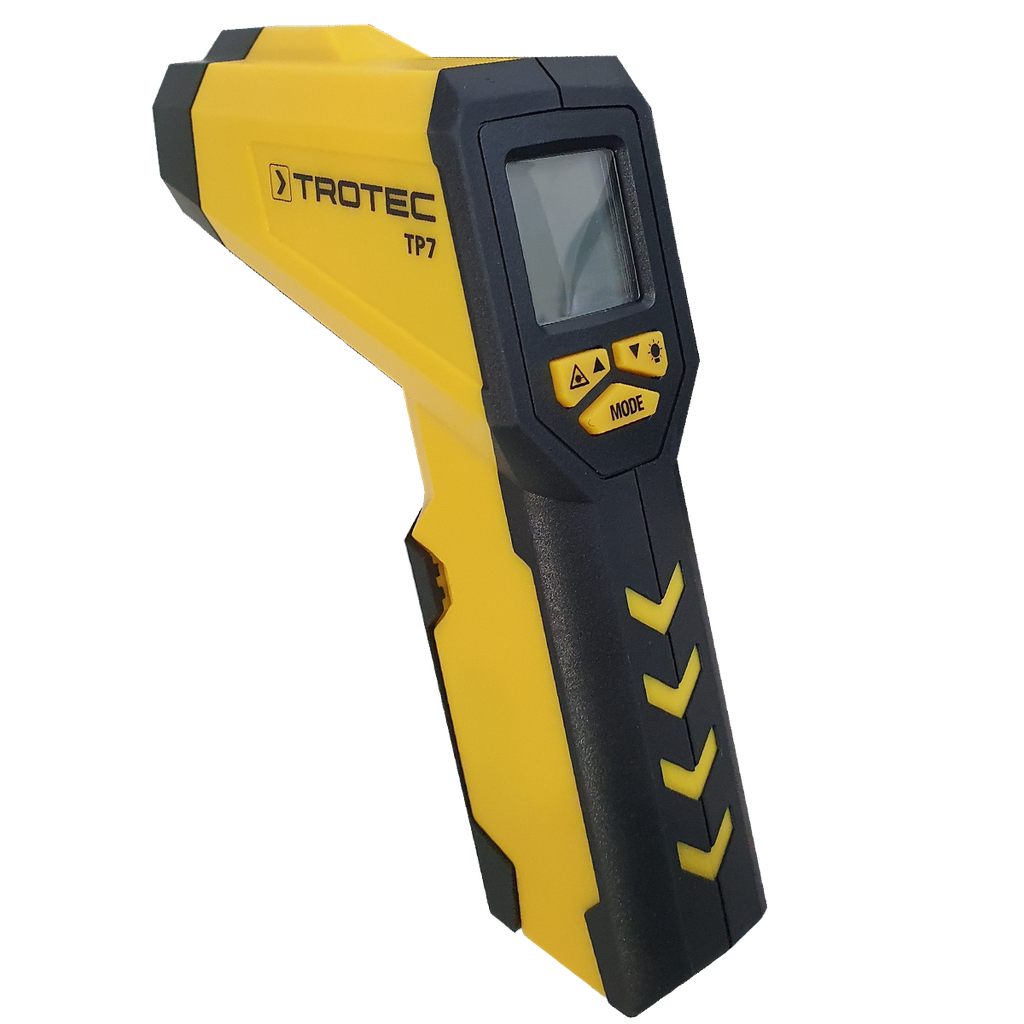

[TP7] Trotec TP7 handheld IR Thermometer

The TP7 handheld infrared thermometer is a precision non-contact surface temperature measuring instrument made in Germany and designed for professional and industrial use. It measures surface temperatures from as low as –50 °C up to +1 000 °C, giving it one of the broadest temperature ranges available in a compact, handheld form. This high maximum range makes the TP7 especially suitable for applications where very hot surfaces need monitoring, such as overheated bearings, exhaust components, furnace parts, kiln elements, or other heat-critical points on machinery and vehicles.

The device employs infrared sensor technology to measure temperature without touching the target surface, which is essential for safety when working with hot, hard-to-reach, moving, or hazardous objects. The infrared sensor detects thermal radiation emitted by the surface and converts it into a temperature reading displayed on the backlit LCD screen, allowing quick assessments with minimal setup.

A distinguishing feature of the TP7 is its multi-point laser aiming system. Rather than a single laser dot, it uses a central targeting laser surrounded by additional lasers that outline the boundary of the measurement area. This helps the user accurately visualise the size and position of the spot being measured, improving confidence in the reading and reducing the chance of mis-targeting small or distant objects.

The optical resolution of the device is rated at 40:1, meaning at 40 units of distance the measurement spot is 1 unit in diameter. This allows more precise temperature readings from further away compared with lower ratio instruments, which is useful when measuring hot machinery or exhaust surfaces that are unsafe to approach closely.

The TP7 includes several practical features for everyday use. The emissivity setting can be adjusted between 0.10 and 1.0 to better match different material surfaces, improving measurement accuracy across metals, paints, rubber, and other finishes. It also offers high/low alarm thresholds with both visual colour-coded display changes and an audible alert, helping operators quickly identify temperatures outside preset limits. Other standard functions include maximum value capture, data hold, continuous measurement mode, and automatic shutdown to save battery life.

Typical use cases include checking hot bearings, motors, compressors, gearboxes, and exhaust manifolds, where bearing temperatures often reach several hundred degrees and can indicate wear or impending failure before a breakdown occurs. The wide temperature range also lets technicians monitor kiln or furnace parts, check brake or clutch surface temperatures, assess radiant heat on exhaust stacks, and verify heat distribution in metalworking or fabrication tasks. Because the measurement is non-contact, it is ideal for hot, dangerous, or rotating machinery where probes cannot safely be used.

Ergonomically, the TP7 is lightweight and shaped for handheld use, with controls and display laid out for quick one-hand operation. The backlit display aids visibility in dim environments such as workshops or engine compartments. Operation is simple: aim the device at the surface, pull the trigger, and read the temperature on the screen.

In summary, the TP7 handheld infrared thermometer combines a very broad temperature range up to 1 000 °C with precision laser targeting and practical features that suit it to routine maintenance, troubleshooting, and safety checks across agricultural, automotive, industrial, and mechanical applications. Its non-contact measurement method, adjustable emissivity, and alarm functions make it a versatile and reliable tool for professionals who need fast, accurate surface temperature readings.
