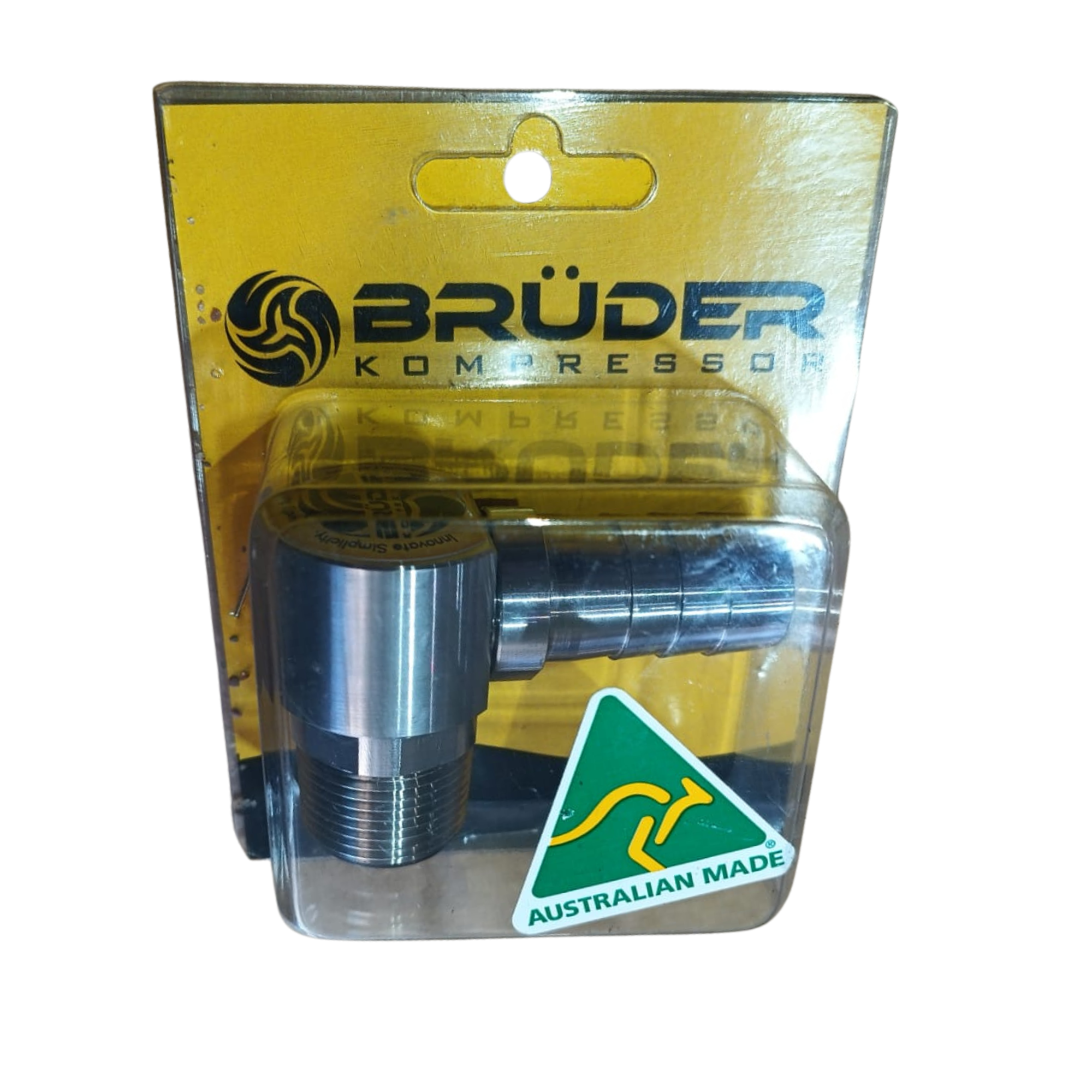

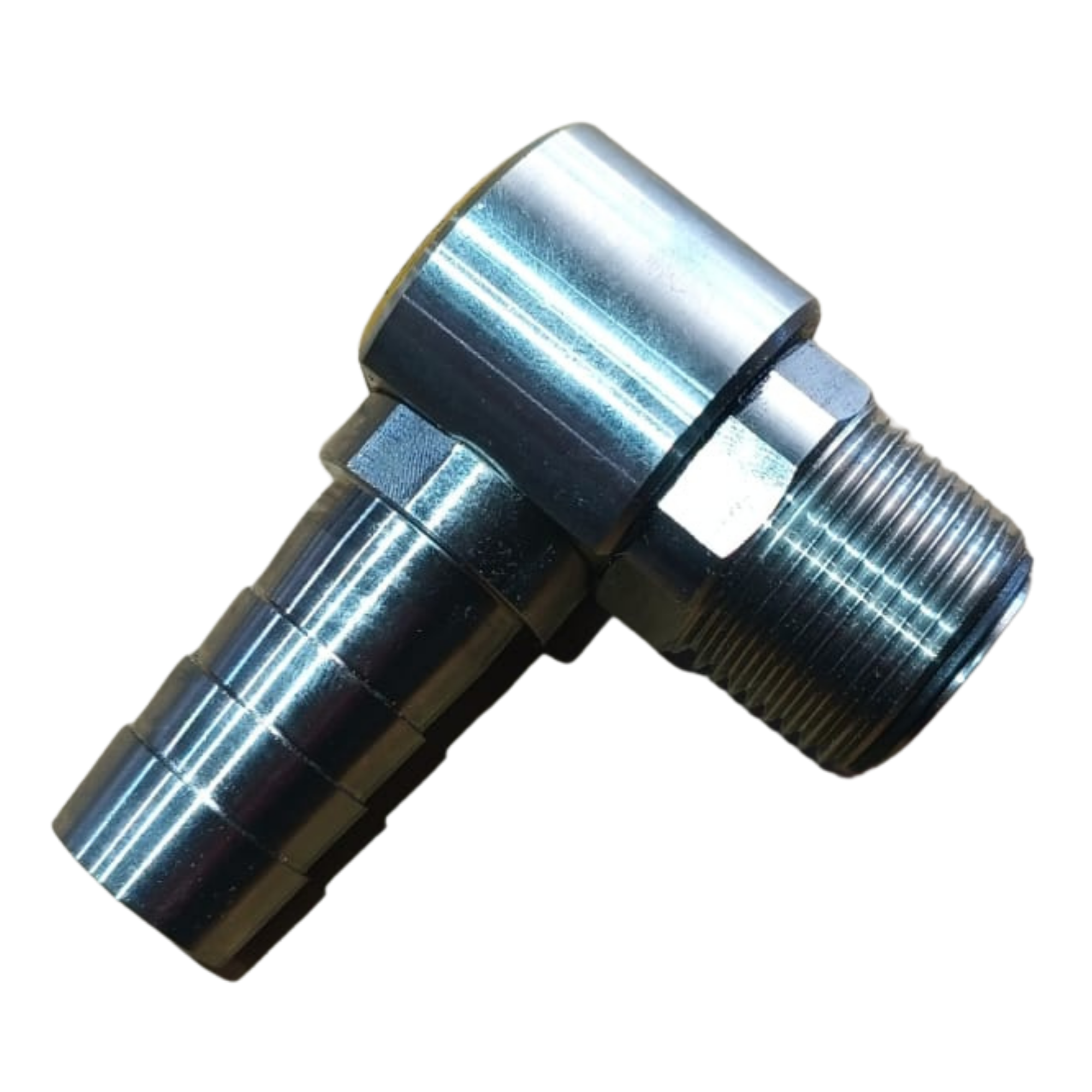

[BMAN34E] Bruder 3/4″ Stainless Steel Swivel Elbow

Description

The Bruder Stainless Steel Swivelling Elbow Assembly is an Australian made, heavy-duty fitting designed for use on hose reels and tight installation spaces where a compact, high-flow swivel connection is required. Developed to Bruder’s own design specifications, it provides reliable fluid transfer while allowing controlled movement at the connection point.

Manufactured from stainless steel, the body offers excellent strength and corrosion resistance, making it suitable for demanding workshop, industrial, agricultural, and mobile applications. The swivel function helps reduce hose twist and stress during reel operation, supporting smoother hose payout and rewind while protecting connected fittings from premature wear.

The assembly features a full-bore through-flow design to minimise restriction and maintain consistent flow rates, which is particularly important in high-demand air or fluid systems. Sealing is achieved via double O-rings made from oil-resistant Buna-N, providing dependable leak control and durability under pressure.

Configured with a 3/4 inch BSP male swivelling thread and a 3/4 inch (19 mm ID) hosetail barb, the elbow is well suited to hose reel plumbing where space is limited but performance cannot be compromised. Its robust construction and serviceable design make it a reliable, long-term solution for professional hose reel installations.
