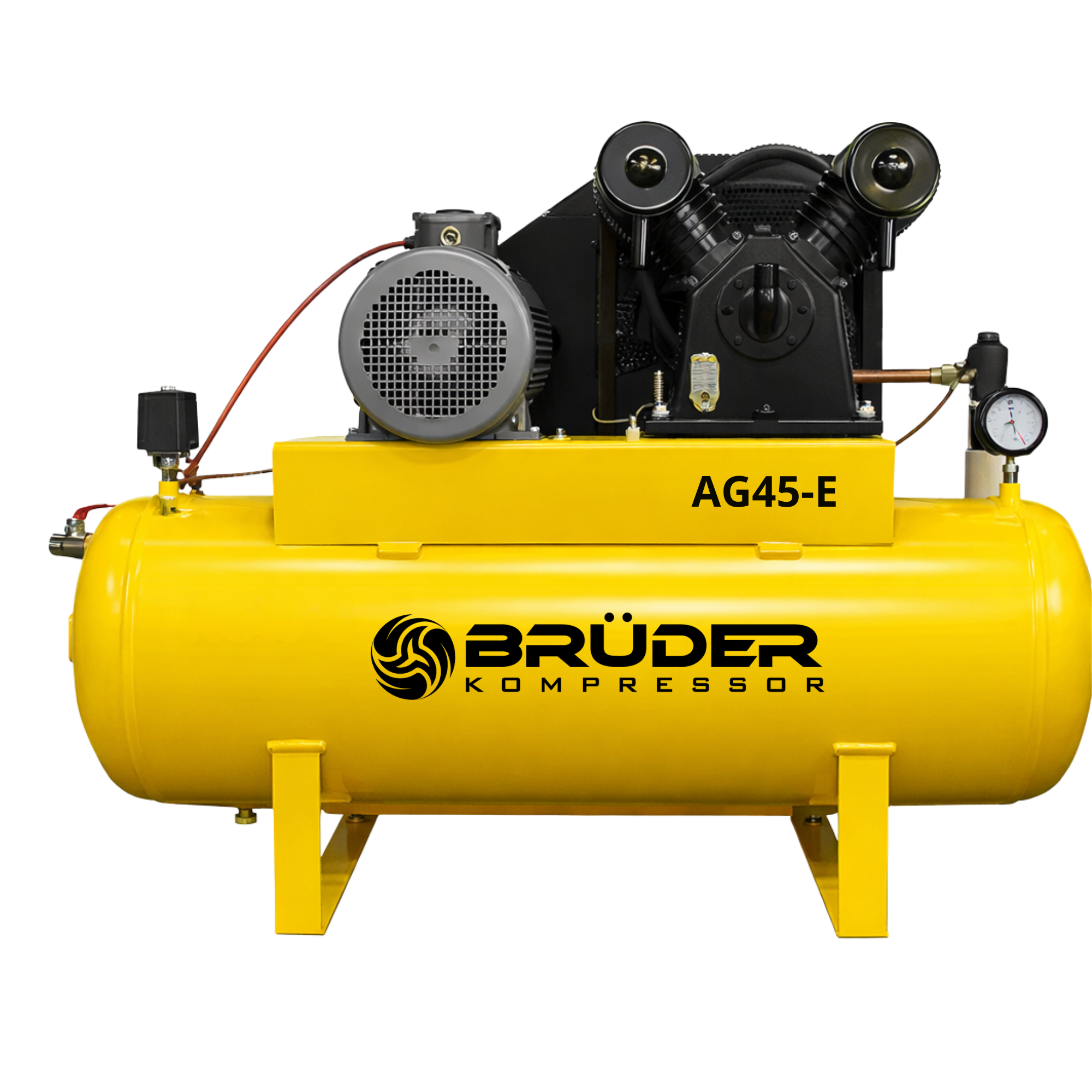

[AG45-E] 45cfm, 150PSI 3 Phase Electric driven Piston on 240L Tank STAT (32cfm FAD)

Description

The Bruder AG45-E is a high-capacity, three-phase electric piston air compressor engineered for demanding industrial workshops and high-consumption pneumatic applications. Built in Australia and designed for durability, it combines a heavy-duty cast iron pump with a large, compliant Australian-made air receiver to deliver reliable compressed air in continuous-use environments.

Producing strong airflow up to 140 PSI, the AG45-E is suited to operations running multiple tools, larger air-driven equipment, or processes requiring sustained air delivery. The belt-driven configuration allows controlled pump speeds, reducing vibration and mechanical stress while maintaining efficient performance. A well-ventilated metal belt guard provides protection and supports effective cooling during operation.

The 240 litre Australian-made air receiver is manufactured to AS1210 boiler specification and approved in all states. The compressor is fitted with a fully adjustable automatic stop/start pressure switch with overload protection to safeguard the motor under load. Heat-treated steel suction and discharge valves maximise efficiency and long service life, while cartridge-style inlet filters with noise dampeners support clean, quieter operation.

Designed for long-term ownership, the AG45-E includes genuine Nitto Kohki fittings as standard, a non-return valve, safety pressure relief valve, easy-read pressure gauge, and accessible drain cock. All steel components are treated with primer/etch and finished with two coats of industrial enamel for corrosion resistance. The unit is fully repairable, with minimal use of disposable materials.

Bruder supports this compressor with locally stocked parts, including less common components, ensuring you are not reliant on overseas freight delays. Our team provides direct phone-based technical assistance and qualified mechanical service support to keep your operation running.

Specifications:

• Motor: 10 HP (7.5 kW) electric motor
• Voltage: 415 V
• Starting: Automatic
• Compressor type: Belt drive, single stage
• Cylinders: 2
• Pump construction: Heavy duty cast iron
• Free Air Delivery (FAD): 32 CFM
• Maximum pressure: 140 PSI
• Tank capacity: 240 L Australian made receiver (AS1210 compliant)
• Activation: Electric pressure switch with auto cut in/out
• Mounting: Forklift slots
• Length: 184 cm
• Width: 58 cm
• Height: 100 cm
• Weight: 230 kg
• Warranty: 24 months
• Country of Origin: Australia

Typical Applications:

• Industrial workshops with multiple air users
• Automotive and heavy vehicle service centres
• Fabrication and engineering facilities
• Tyre shops and high-volume service bays
• Agricultural machinery workshops
• Manufacturing and assembly environments
• Maintenance departments requiring higher CFM capacity

For assistance with airflow calculations, electrical requirements, or application suitability, contact our team for practical sizing advice. We will ensure the AG45-E is correctly matched to your operational needs, supported by local parts availability and direct technical service.
