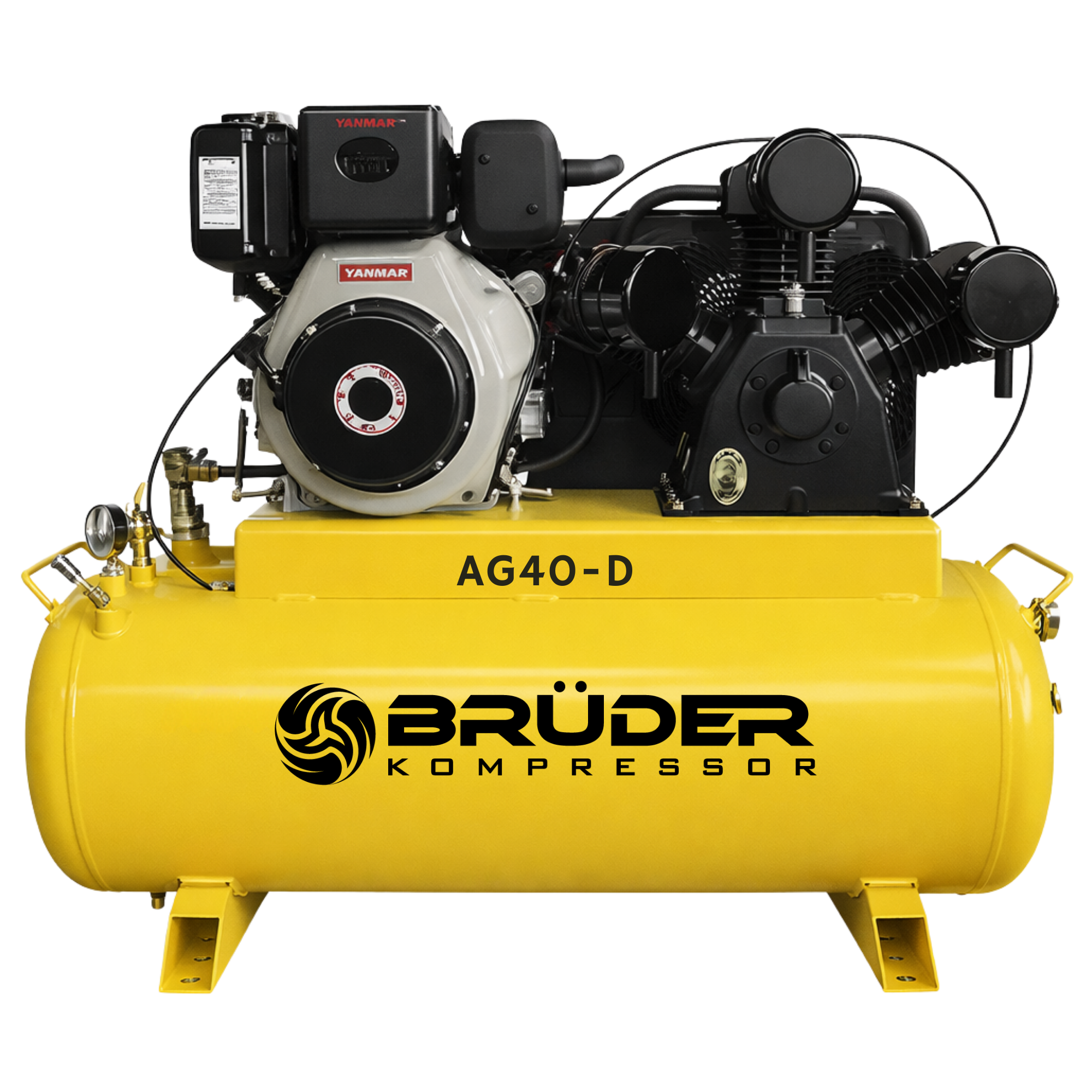

[AG40-D] 40cfm, 140PSI 10hp Yanmar Driven Piston on 180L (2 x 90L) tank with electric start

Description

The Bruder AG40-D is a high-capacity diesel piston air compressor engineered for demanding field and industrial applications where reliable, self-powered air is essential. Designed and manufactured in Australia, it pairs a proven Yanmar diesel engine with a heavy-duty two-stage cast iron pump, delivering strong airflow and consistent performance in remote and mobile environments.

Producing up to 140 PSI with substantial free air delivery, the AG40-D is suited to service trucks, civil works, agricultural operations, and heavy maintenance tasks requiring multiple air tools. The belt-driven configuration allows controlled pump speeds, reducing vibration and mechanical wear while maintaining efficient output. A well-ventilated metal belt guard protects rotating components and supports effective cooling under sustained load.

The compressor is fitted with dual 90 litre Australian-made air receivers (180 litres total), manufactured to AS1210 boiler specification and approved in all states. A pneumatic throttle cylinder manages engine response under varying air demand for improved efficiency. The unit also includes a non-return valve, safety pressure relief valve, easy-read pressure gauge, and accessible drain cock for practical day-to-day operation. Heat-treated steel suction and discharge valves maximise durability and performance, while cartridge-style inlet filters with noise dampeners support clean and quieter running.

All steel components are treated with primer/etch and finished with two coats of industrial enamel for corrosion resistance. The compressor is fully repairable and designed with minimal disposable materials, making it well suited to long-term ownership in demanding working conditions.

Bruder supports the AG40-D with locally stocked spare parts, including less common components, ensuring you are not reliant on overseas freight delays. Our team provides direct phone-based technical assistance and qualified mechanical service support to keep your compressor operating reliably.

Specifications:

• Engine: 10 HP Yanmar diesel engine
• Starting: Electric start
• Compressor type: Belt drive, two stage
• Cylinders: 3
• Pump construction: Heavy duty cast iron
• Free Air Delivery (FAD): 28.5 CFM
• Maximum pressure: 140 PSI
• Tank capacity: 180 L total (2 x 90 L Australian made receivers, AS1210 compliant)
• Activation: Pneumatic throttle cylinder
• Length: 150 cm
• Width: 60 cm
• Height: 100 cm
• Weight: 180 kg
• Warranty: 24 months
• Country of Origin: Australia

Typical Applications:

• Heavy service trucks and mobile maintenance units
• Civil and construction site works
• Agricultural and rural property operations
• Running multiple pneumatic tools in the field
• Remote breakdown and repair response
• Machinery servicing and tyre inflation
• Industrial maintenance in off-grid environments

If you require assistance selecting the correct diesel compressor for your airflow and duty cycle requirements, contact our team for practical sizing advice. We will ensure the AG40-D is properly matched to your application, supported by local parts availability and direct technical support.
