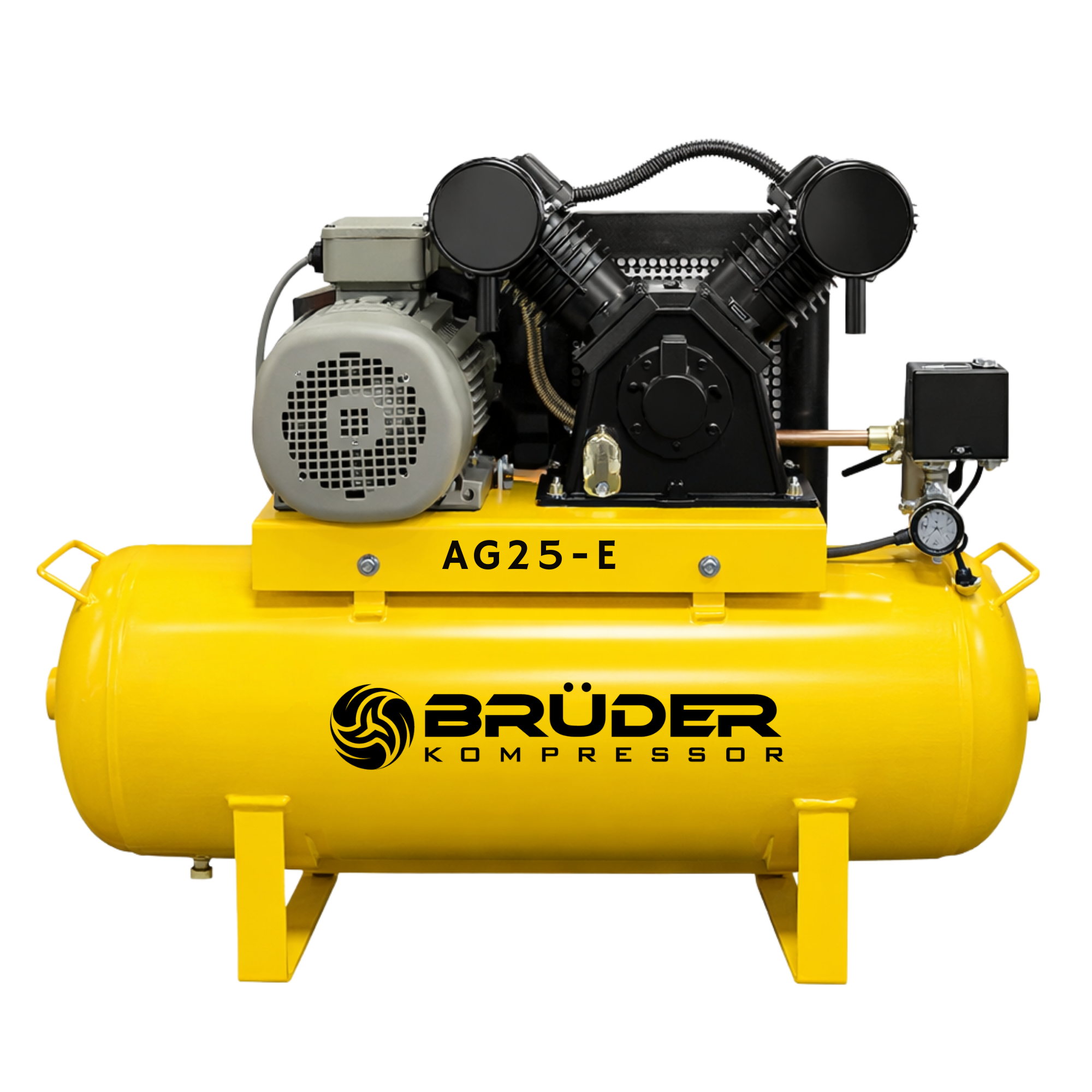

[AG25-E] 25cfm, 150PSI Three Phase Electric driven Piston on 100L Tank STAT (18cfm FAD)

Description

The Bruder AG25-E is a high-capacity electric piston air compressor designed for workshops and industrial environments that demand higher airflow and durable, continuous performance. Built in Australia and engineered for reliability, it combines a robust cast iron pump with a compliant Australian-made air receiver for dependable long-term operation.

Delivering strong airflow at up to 140 PSI, the AG25-E is suited to operations running multiple air tools or higher-consumption equipment. The belt-driven configuration ensures controlled pump speeds, reduced vibration, and improved service life. Its heavy-duty, precision engineered cast iron pump is protected by a well-ventilated metal belt guard for safe and efficient cooling.

The Australian-made air receiver is manufactured to AS1210 boiler specification and approved in all states. A fully adjustable automatic stop/start pressure switch provides controlled cut-in and cut-out operation, while integrated overload protection safeguards the motor during demanding use. Heat-treated steel suction and discharge valves maximise efficiency and durability.

Designed with practical ownership in mind, the unit includes cartridge-style air filters with noise dampeners, genuine Nitto Kohki fittings as standard, non-return and safety relief valves, and an accessible drain cock. All steel components are treated with primer/etch and finished with two coats of industrial enamel for corrosion resistance. The compressor is fully repairable, with minimal use of disposable materials.

As with all Bruder compressors, parts are stocked locally, including less common components, ensuring you are not reliant on overseas freight delays. Our team provides direct phone-based technical support and qualified mechanical service assistance to keep your equipment operating reliably.

Specifications:

• Motor: 5.5 HP (4 kW) electric motor
• Voltage: 415 V
• Starting: Automatic
• Compressor type: Belt drive, single stage
• Cylinders: 2
• Pump construction: Heavy duty cast iron
• Free Air Delivery (FAD): 18 CFM
• Maximum pressure: 140 PSI
• Tank capacity: 100 L Australian made receiver (AS1210 compliant)
• Activation: Electric pressure switch with auto cut in/out
• Mounting: Forklift slots
• Length: 130 cm
• Width: 60 cm
• Height: 95 cm
• Weight: 170 kg
• Warranty: 24 months
• Country of Origin: Australia

Typical Applications:

• Automotive and heavy vehicle workshops
• Running multiple pneumatic tools simultaneously
• Tyre shops and service centres
• Fabrication and engineering workshops
• Agricultural workshops and machinery maintenance
• Industrial maintenance departments
• Trade environments requiring higher CFM output

If you require assistance selecting the right compressor for your airflow and power supply requirements, contact our team for practical sizing advice and technical guidance. We will ensure the AG25-E is matched correctly to your application, supported by local parts availability and direct mechanical support.
