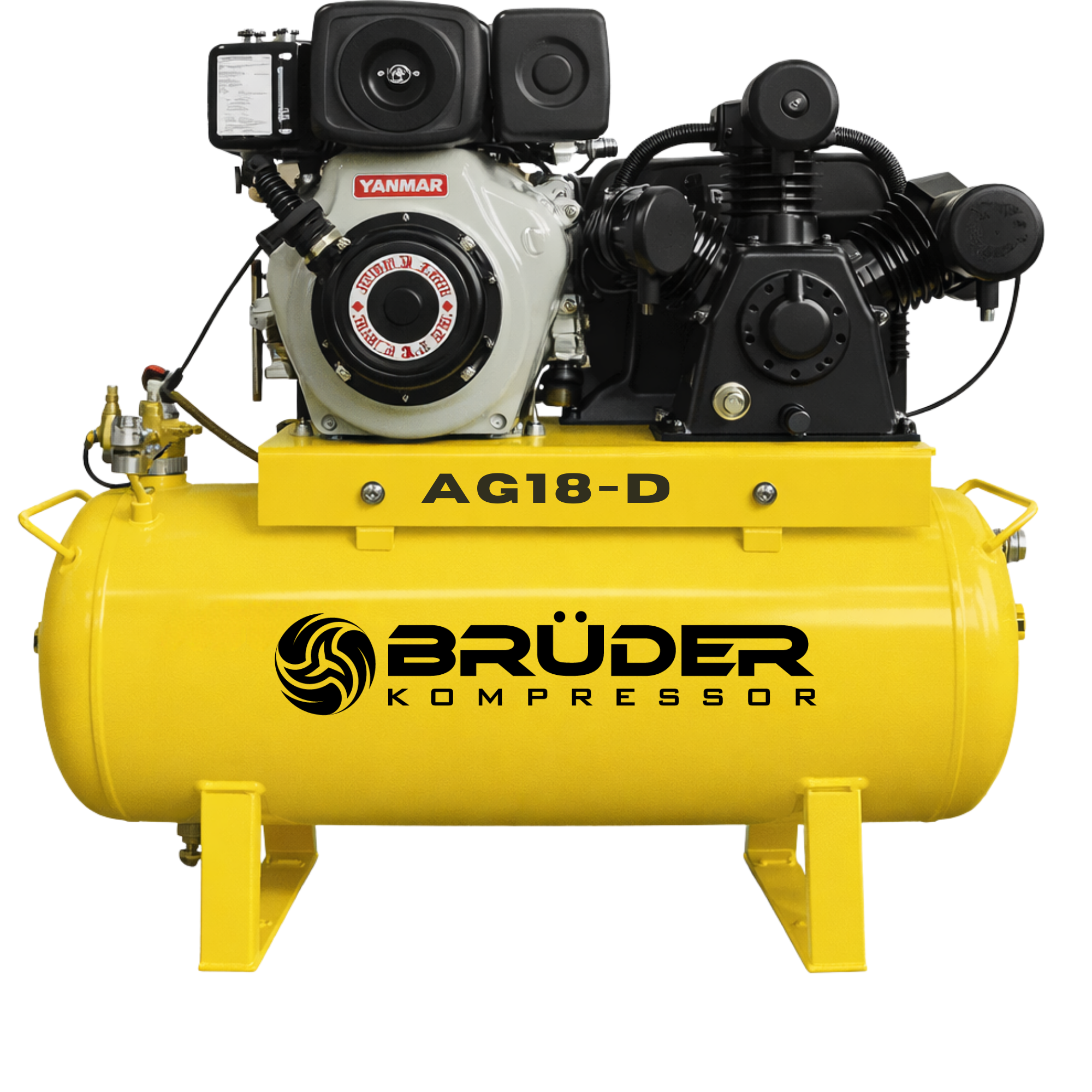

[AG18-D] 18cfm, 140PSI 4.8hp Yanmar driven Piston on 70L Tank with electric start

Description

The Bruder AG18-D is a compact diesel-powered piston air compressor built for mobile trade, agricultural, and remote site applications where reliable air is required without access to mains power. Designed and manufactured in Australia, it combines a proven Yanmar diesel engine with a heavy-duty cast iron pump for dependable field performance.

Delivering up to 140 PSI with practical free air output, the AG18-D is suited to service vehicles, fencing crews, and maintenance teams needing self-contained compressed air. The belt-driven configuration allows controlled pump speeds, reducing vibration and mechanical wear while maintaining efficient operation. A well-ventilated metal belt guard protects moving components and supports effective cooling.

The Australian-made air receiver is manufactured to AS1210 boiler specification and approved in all states. The compressor is equipped with a pneumatic throttle cylinder for controlled engine response under load, along with a non-return valve, safety pressure relief valve, easy-read pressure gauge, and accessible drain cock. Heat-treated steel suction and discharge valves maximise durability and efficiency, while cartridge-style inlet filters with noise dampeners support clean and quieter operation.

All steel components are treated with primer/etch and finished with two coats of industrial enamel for corrosion resistance. The unit is fully repairable, with minimal use of disposable materials, making it well suited to long-term ownership in working environments.

As with all Bruder compressors, spare parts are stocked locally, including less common components, so you are not dependent on overseas freight delays. Our team provides direct phone-based technical assistance and qualified mechanical service support to keep your equipment operational.

Specifications:

• Engine: 4.8 HP Yanmar diesel engine
• Starting: Manual recoil
• Compressor type: Belt drive, single stage
• Cylinders: 2
• Pump construction: Heavy duty cast iron
• Free Air Delivery (FAD): 12.6 CFM
• Maximum pressure: 140 PSI
• Tank capacity: 60 L Australian made receiver (AS1210 compliant)
• Activation: Pneumatic throttle cylinder
• Mounting: Forklift slots
• Length: 122 cm
• Width: 45 cm
• Height: 85 cm
• Weight: 60 kg
• Warranty: 24 months
• Country of Origin: Australia

Typical Applications:

• Mobile service and field maintenance vehicles
• Agricultural fencing and property work
• Remote site repairs and maintenance
• On-site tyre inflation and light pneumatic tools
• Construction and civil maintenance tasks
• Farm machinery servicing
• Trade operations requiring self-powered air

If you need assistance confirming suitability for your application or duty cycle, contact our team for practical advice. We will ensure the AG18-D is correctly matched to your operational requirements, backed by local parts availability and direct technical support.
