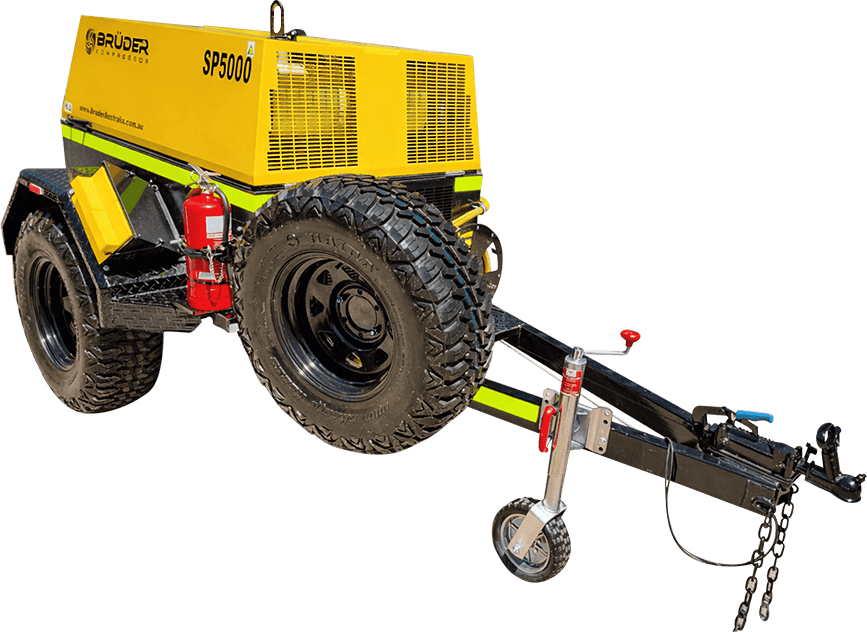

THE BRÜDER SP5000
COMPACT BUILD. HEAVY-DUTY OUTPUT.
The Brüder SP5000 is a proven diesel rotary screw compressor built for demanding construction, civil, and earthmoving applications.
Designed for harsh environments, it delivers consistent high-flow air with reliability in heat, dust, and continuous operations.
Powered by a Kubota turbo diesel engine and engineered for Australian conditions, the SP5000 is built for serious on-site performance.
Reliable air. Built for the long haul.
HIGH FLOW.
PROVEN PLATFORM.
- 176 CFM C 7 bar (5 m³/min)
- 140 CFM @ 10 bar
- 113 CFM @ 12 bar
- Kubota V1505-T turbo diesel engine
- 36.4 HP (27 kW @ 3000 rpm)
- 70 L fuel capacity
- 1090 kg total weight
- 1600 x 1030 x 990 mm
- Operates from -10°C to +50°C
- Max discharge temp: 110°C
Oil-injected rotary screw system designed for stable output under continuous load.
BUILT FOR HARSH JOBSITE CONDITIONS
Consistent air delivery under heavy load
Maintains stable output during peak demand periods.
Performs in high heat and dusty environments
Cooling and filtration systems built for extreme site conditions.
Heavy-duty trailer for rough terrain transport
Designed to handle construction sites and uneven ground.
Long runtime with 70L fuel capacity
Extended operation between refuelling stops.
Stable operation in continuous duty cycles
Built for long hours of uninterrupted site use
Fast servicing with spin-on filters
Reduced downtime during maintenance and servicing.
Engineered for reliability when conditions get extreme.
BUILT FOR DEMANDING APPLICATIONS
CIVIL & CONSTRUCTION WORK
Reliable air supply for structural and infrastructure works
HEAVY EQUIPMENT SUPPORT
Stable performance for continuous pneumatic tool and machinery operation
INDUSTRIAL & MOBILE MAINTENANCE FLEETS
Dependable air supply for servicing, repair, and remote field operations
NEED HIGH-FLOW AIR ON SITE?
From compact service work to high-demand operations, the MU Series is built to match your workload.
Enquire for availability, or fleet supply options.
