THE BRÜDER MU400
POWERFULL PERFORMANCE.
COMPACT BY DESIGN.

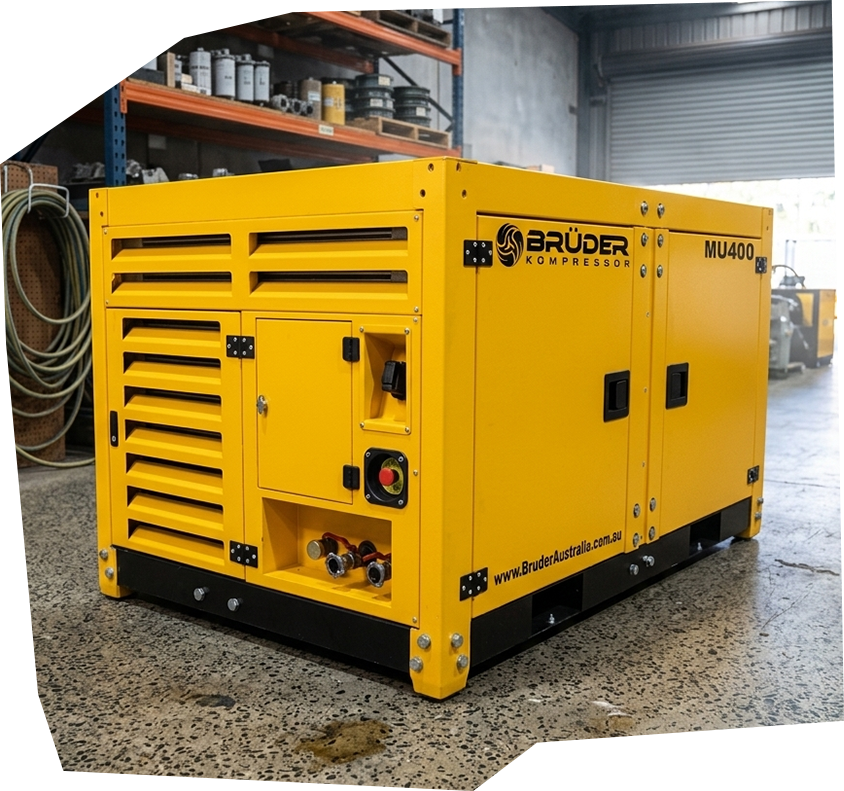

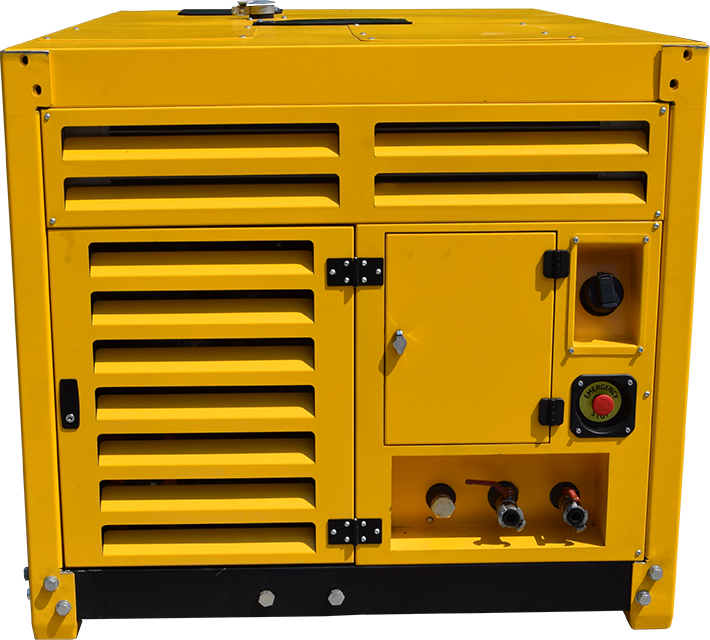

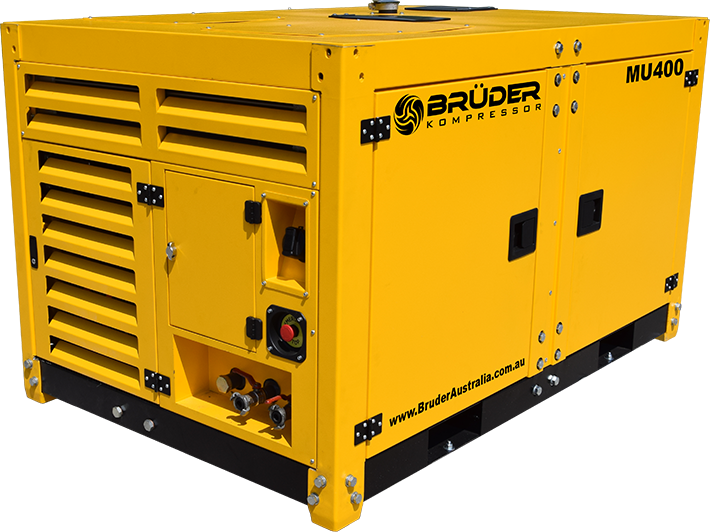

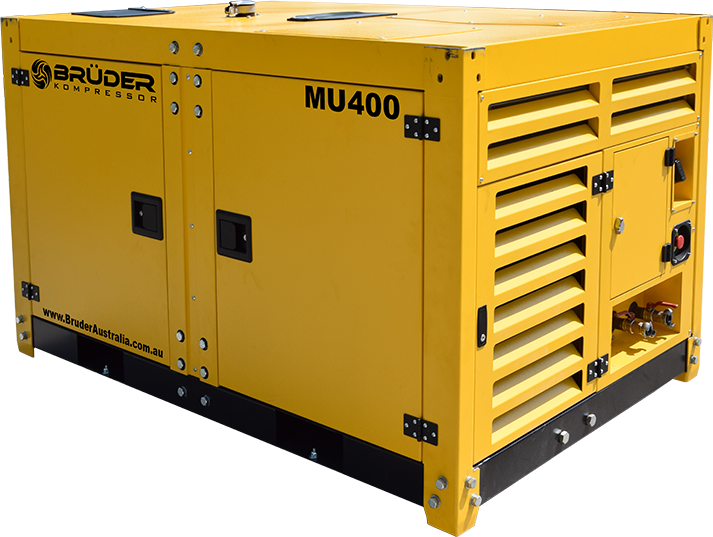

The Brüder MU400 is a high-output mobile compressor engineered to deliver 400 CFM of reliable compressed air in a compact, field-ready platform.
Built for civil construction, drilling, sandblasting, and industrial applications, it is designed to perform in demanding environments where consistent airflow, uptime, and mobility are critical.
Powered by a Kubota V3800 DI-T-E3 diesel engine and engineered to tough site conditions, the MU400 combines high airflow capability with a space-efficient design suited for contractors and equipment hire fleets.
Compact. Powerful. Built for continuous performance.
COMPACT FRAME.
MASSIVE CLAIM.
- Capacity: 400 CFM
- Operating Pressure: 8/10/12 bar options available
- Ambient Operating Temperature: Up to 50°C
- Maximum Discharge Temperature: 110°C
- Air Outlets: 2 x 3/4″ BSP + 1 x 1″ BSP
- Engine: Kubota V3800 DI-T-E3
- Nominal Power: 74 kW @ 2600 rpm
- Fuel Tank Volume: 140L steel fuel tank
- Total Mass: Approx. 1200 kg (box unit only)
- Dimensions (L x W x H): 1870 x 1220 x 1180
Aftercooler System
Available as an optional configuration to improve air quality and reduce moisture content for sensitive pneumatic applications
BUILT FOR TOUGH JOBSITE PERFORMANCE
Compact box-type design for site flexibility
Engineered with a space-efficient layout and integrated doors, the MU400 delivers high performance in a compact footprint suited for modern job sites.
Consistent air delivery under heavy load
Powered by a Kubota V3800 DI-T-E3 engine and Elgi AXIS screw system, the MU400 maintains stable air output even during continuous high-demand operation.
Built for harsh environments
Designed for operation in dust, heat and demanding site considitions, with robust airflow management and cooling system integration.
Extended run time with 140L fuel capacity
Large steel fuel tank allows longer operating cycles between refueling, improving productivity on remote or continuous-use sites.
Engineered for transport and handling efficiency
Integrated forklift points and stackable design allow efficient transport, storage, and container loading for hire fleets and contractors.
Easy access servicing design
Strategic component placement allows fast maintenance access to filters, oil systems, and service points to reduce downtime.
Flexible air system configuration
Supports multiple outlet configurations with options for after-cooler, cyclone pre-filters, spark arrestor, and additional safety instrumentation
Built for reliability in continuous duty
Designed for long operating cycles with minimal interruption, ensuring dependable performance across civil, industrial, and drilling applications.
Reliable air. Compact footprint. Built for the long haul.
TAILORED FOR YOUR APPLICATION
CIVIL & CONSTRUCTION
Reliable compressed air for infrastructure, roadworks, and site operations.
DRILLING AND SURFACE PREPARATION
Consistent airflow for drilling support, blasting and demanding pneumatic applications.
EQUIPMENT HIRE FLEETS
Compact, transportable design suited for efficient fleet deployment and utilisation.
NEED HIGH-FLOW AIR ON SITE?
The MU400 is built for operators who need reliable, continuous air delivery in demanding environments.
Enquire for availability, specs, or fleet supply options.
