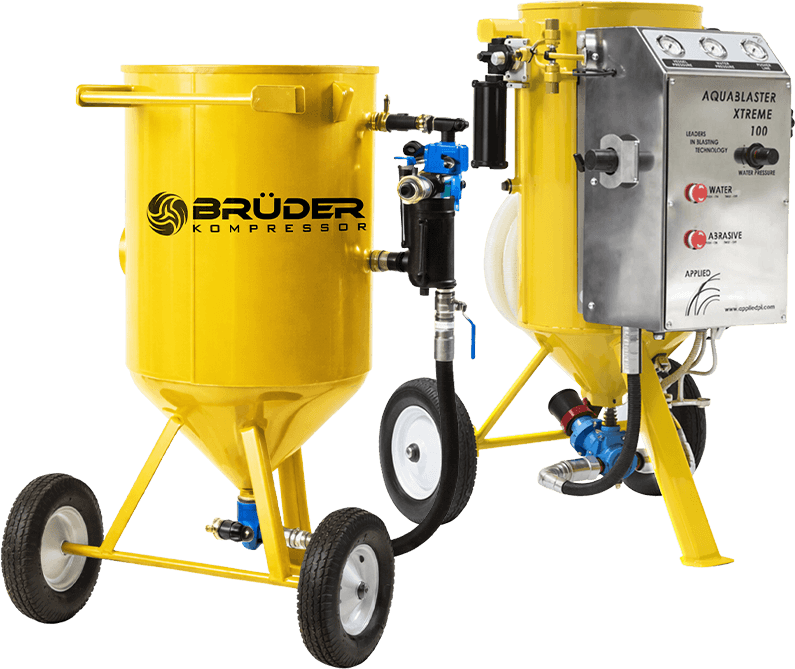

THE BRÜDER SAND BLAST POT
CONTROLLED SURFACE
CONTINUOUS PERFORMANCE
Professional abrasive blasting systems engineered for surface preparation, corrosion removal, and industrial cleaning across demanding environments.
BUILT FOR CONTROLLED,
HIGH PERFORMANCE
SURFACE PREPARATION
The Brüder ABP and BP Series from a professional blasting platform designed for contractors, fabrication workshops, maintenance crews, and hire fleets.
From dust-controlled wet blasting to high-efficiency dry abrasive systems, the range delivers consistent performance across varying surface preparation demands while maintaining operator control and site efficiency.

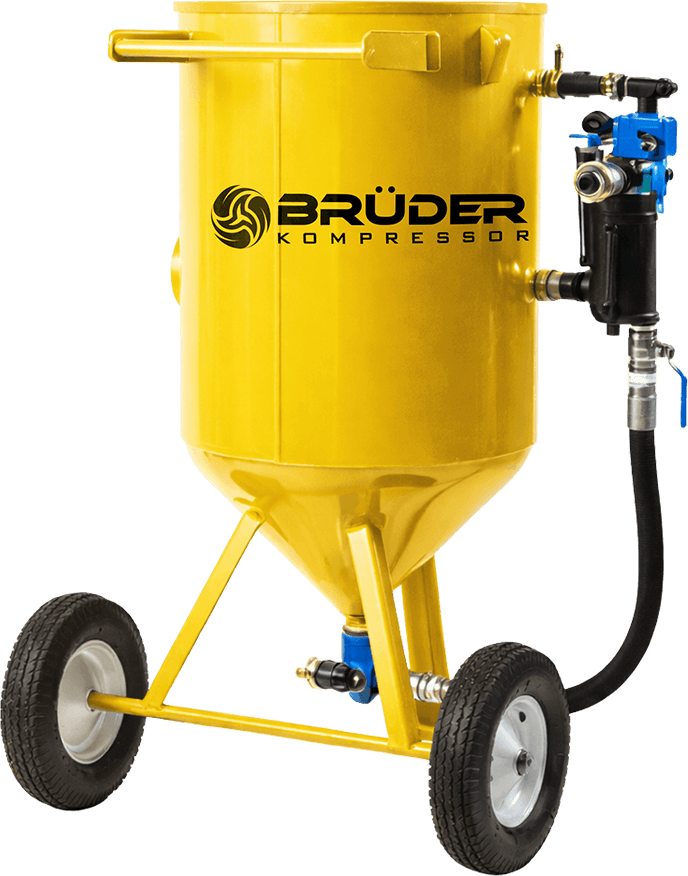

BP10K BLAST POT
RAW EFFICIENCY. CONTINUOUS ABRASIVE FLOW.
A heavy-duty dry blasting system engineered for consistent media delivery, extended runtime, and industrial-grade surface preparation.
Built for fabrication, structural steel, and high-output abrasive applications.
- High-efficeincy dry blasting
- Stable continuous media flow
- Extended operating cycles
- Heavy industrial durability
- Scalable 40L / 100L / 200L platform

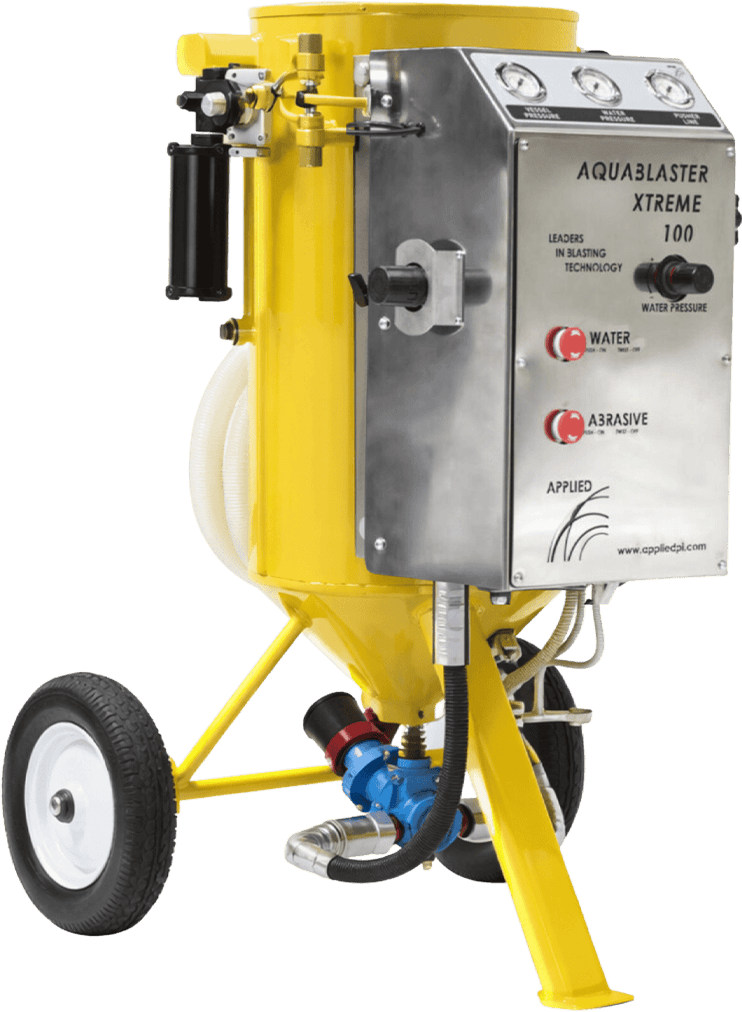

ABP10K AQUABLAST
DUSTLESS PRECISION. WET & DRY CONTROL.
A dual-mode blasting system combining wet abrasive technology and dry blasting in a single mobile unit.
Designed for applications where dust suppression, surface control, and finish quality are critical.
- Dust-controlled blasting performance
- Wet + dry blasting versatility
- Reduced airborne contamination
- Precision surface preparation
- Mobile, site-ready design
TECHNICAL DATA OVERVIEW
| ABP10K AquaBlast | BP10K Blast Pot | |
|---|---|---|
| System Type | Wet / Dry Dustless Blasting System | Dry Abrasive Blasting System |
| Media Capacity | 100 L | 100 L (40L / 100L / 200L options) |
| Tank Diameter | 420 mm | 420 mm |
| Height | 1260 mm | 1260 mm |
| Weight | 144 kg | — |
| Piping Size | 1 inch | 1 inch |
| Blast Time | 40 minutes | 40 minutes |
| Control System | Stainless Steel Control Panel | Pneumatic Remote Control System |
| Air Consumption | 0.252 m³/min (pump system) | — |
| Operating Pressure | 20–100 psi (wet system range) | Site-dependent compressed air supply |
| Pump Type | Double Diaphragm Water Pump | — |
| Max Fluid Flow | 18.9 L/min | — |
| Pump Speed (Dry/Wet) | 320 / 250 cycles/min | — |
| Suction Lift | 2.5–3 m | — |
| Max Solids Size | 1.5 mm | — |

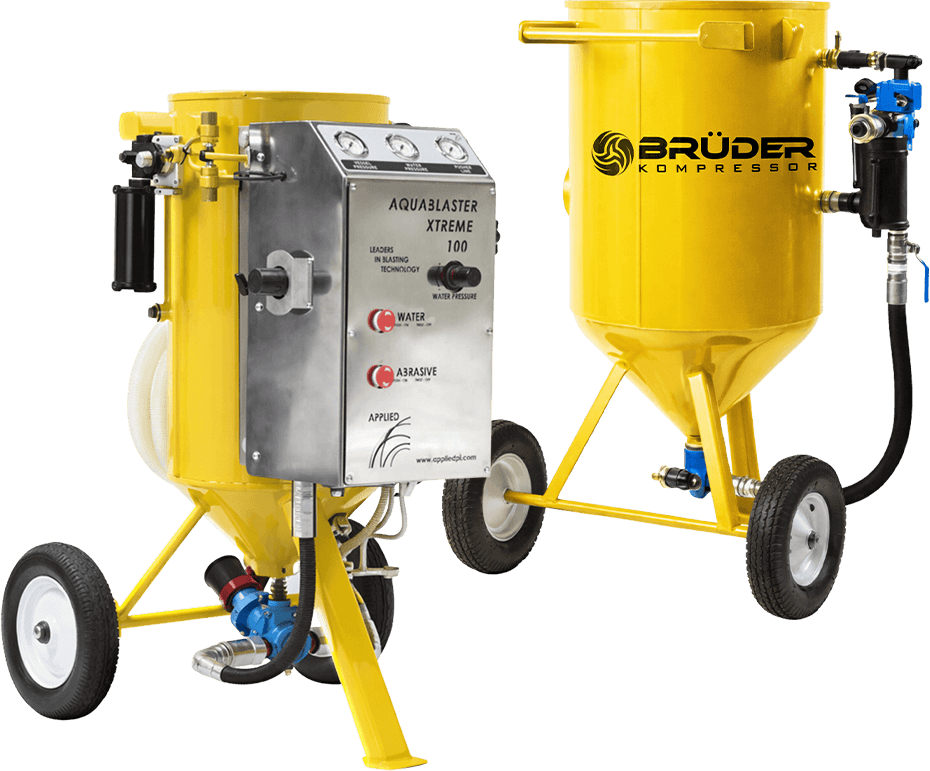

ONE PLATFORM. TWO BLASTING APPROACHES.
REAL-WORLD VERSATILITY.
The Brüder ABP and BP Series are designed for a wide range of industrial surface preparation tasks, from controlled dust-sensitive work to high-output abrasive blasting.
The ABP system is engineered for wet and dry blasting applications where precision, dust control, and surface protection are critical. The BP system delivers continuous dry abrasive performance for heavy-duty industrial environments requiring maximum cleaning power and efficiency.
Together, they form a flexible blasting platform built for real job site conditions from fabrication workshops to large-scale industrial maintenance.
NEED A SYSTEM FOR YOUR SITE?
Tell us what you’re working on – we’ll recommend the right ABP or BP configuration for your application.
